In-line circulator pump TP 50-630/2-A-F-A-BQQE 15kW 400D 50Hz
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
4 404,56 €
EAN: 5712600814974
MPN: 98742776
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | In-line circulator pump TP 50-630/2-A-F-A-BQQE 15kW 400D 50Hz |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | HU |
| Harmonized System Code | 8413 7051 00 |
| Nominal current | 26.86 A |
| Number of phases | 3 |
| Max. discharge flow | 72.47 m³/h |
| Max. static height | 63 m |
| Flange shape | Round |
| Rotational speed | 2940 1/min |
| Ambient temperature | -30 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |
| Electrical connection | Terminals |
| Rated voltage | 380 V |

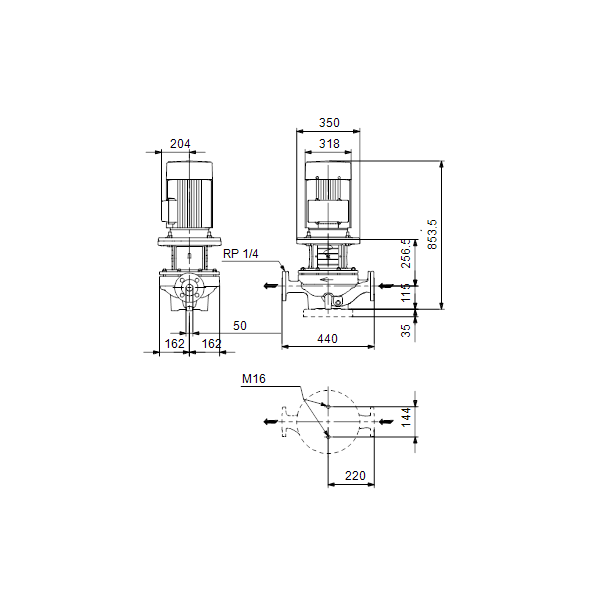

| Built-in length | 440 mm |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP55 |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Cast iron |
| Motor power output (P2) per motor | 15 kW |
| Minimum Efficiency Index (MEI) | 0.7 |
| Volume flow rate (BEP) | 55.9 m³/h |
| Discharge head at flow rate (BEP) | 528.44 kPa |
| Connection standard inlet side | EN 1092-2 |
| Connection standard outlet side | EN 1092-2 |
| Standard motor | Yes |
| Motor efficiency class | IE3 |
| Communication | Built-in and prepared |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | No |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Self-priming | No |
| Motor speed control | None |
| Max. operating pressure | 16 bar |
| Material pump casing | Cast iron |
| Double pump | No |
| Insulation class according to IEC | F |
| Motor with extended shaft | No |
| Material quality pump casing | Cast iron GG 25 (GJL-250) |
| Medium temperature (continuous) | -25 °C |
| Material quality impeller/pump wheel | Cast iron GG 20 (GJL-200) |
| Connection inlet side | Flange |
| Nominal diameter connection inlet side | DN 50 |
| Nominal diameter connection outlet side | DN 50 |
| Connection outlet side | Flange |
| Flange compression stage connection inlet side | PN 16 |
| Flange compression stage connection outlet side | PN 16 |
Packing details
| Packing level 1 | 5712600814974, 5712600814974 |
Downloads
Description
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. Top-pull-out design, i.e. the power head can be removed for maintenance or service while the pump housing remains in the pipework.
