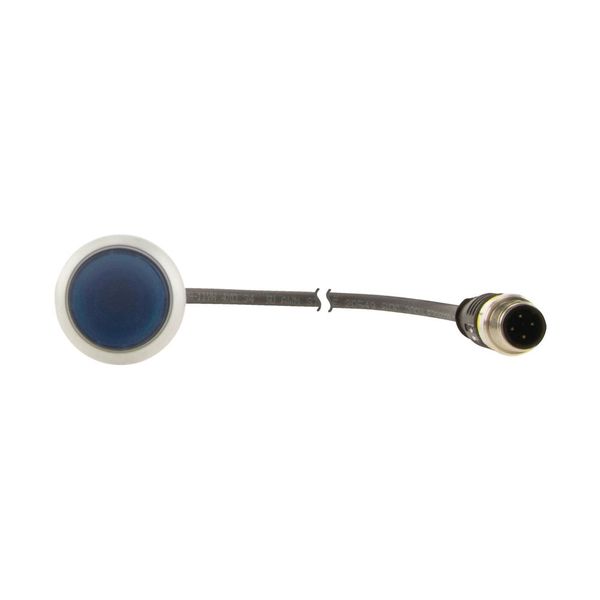

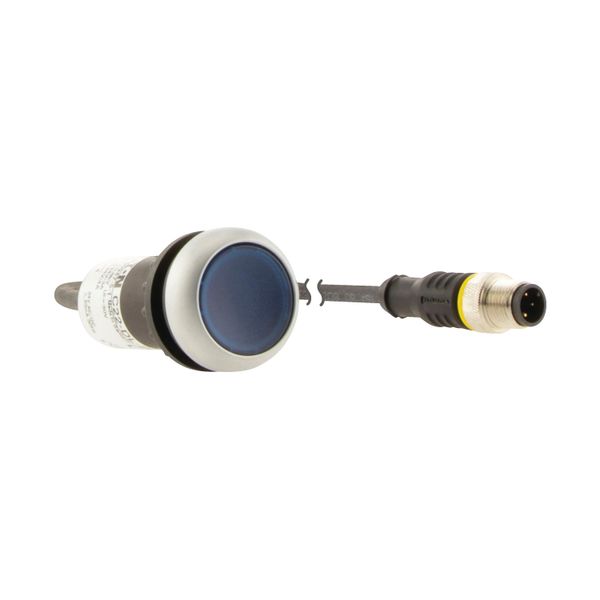

C22-DRL-B-K10-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, blue, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
34,86 €
EAN: 4015081810512
MPN: 185557
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | C22-DRL-B-K10-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, blue, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m |
| Brand | EATON |
| Categories |
Push Buttons
|
| Country of origin | DE |
| Harmonized System Code | 8536 5011 00 |
| Colour button | Blue |
| Number of command positions | 1 |
| Type of button | Flat |
| Degree of protection (IP) | IP67/IP69K |
Packing details
| Packing level 1 | 4015081810512 |
Other Technical data
| Hole diameter | 22.5 mm |
| Suitable for illumination | Yes |
| Spring-return | No |
| Colour front ring | Titanium |
| Type of electric connection | Other |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Material front ring | Plastic |
| With front ring | No |
| Transparent | No |
| Construction type lens | Round |
| Supply voltage lamp | 24 V |
| Switching function latching | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | 12 |
Description
Illuminated pushbutton actuator, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 0.2 m, Color LED: Blue, button plate: Blue, Button plate Blank, Rated operational voltage LED: 24 V AC/DC, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660
