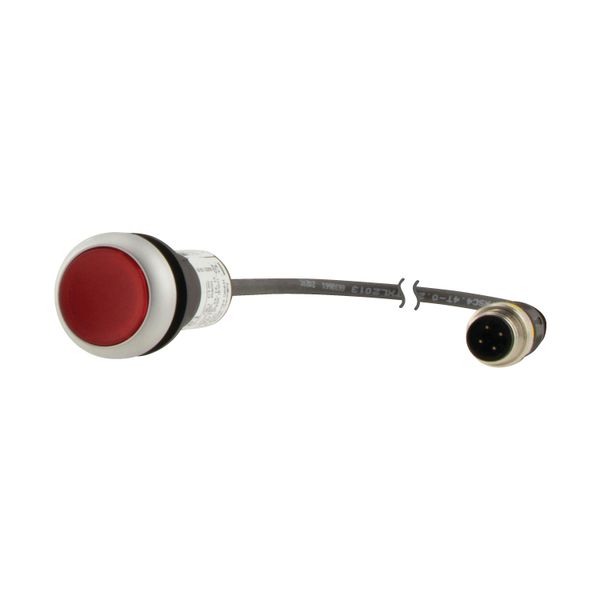

C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 1

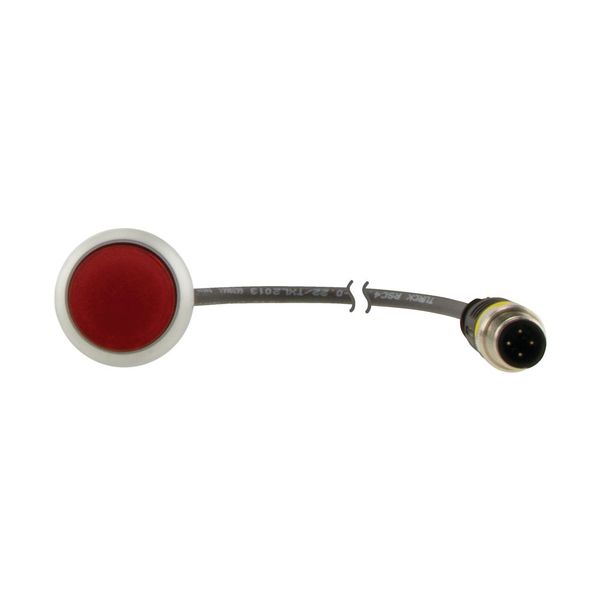

C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 2

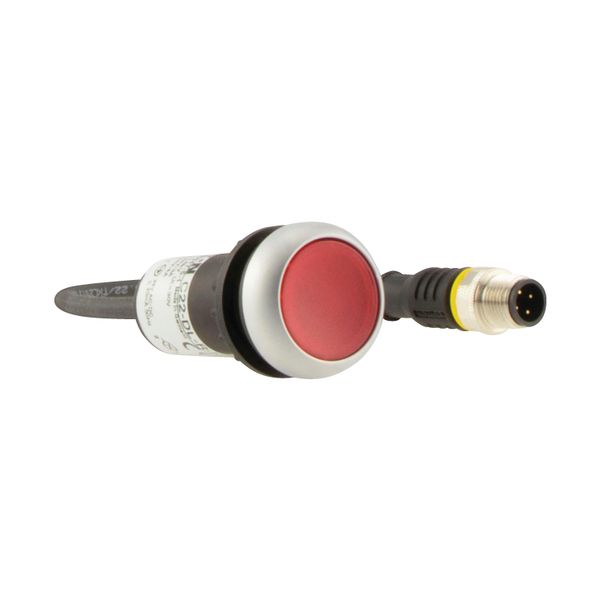

C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 3
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 4
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 5
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 6
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 7
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 8
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 9
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 10
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 11
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 12
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 13
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 14
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 15
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 16
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m image 17
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 1
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 2
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 3
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 4
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 5
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 6
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 7
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 8
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 9
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 10
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 11
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 12
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 13
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 14
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 15
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 16
C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m thumbnail 17
EATON

C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
34,86 €
This price is valid until 24.12.25
EAN: 4015081810536
MPN: 185559
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name C22-DRL-R-K01-24-P1 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/C, red, 24 V AC/DC, cable (black) with m12a plug, 4 pole, 0.2 m
Brand EATON
Categories Push Buttons
Country of origin DE
Harmonized System Code 8536 5011 00
Colour button Red
Number of command positions 1
Type of button Flat
Degree of protection (IP) IP67/IP69K

Packing details

Packing level 1 4015081810536

Other Technical data

Hole diameter 22.5 mm
Suitable for illumination Yes
Spring-return No
Colour front ring Titanium
Type of electric connection Other
Width opening 0 mm
Height opening 0 mm
Material front ring Plastic
With front ring No
Transparent No
Construction type lens Round
Supply voltage lamp 24 V
Switching function latching No
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 0
Number of contacts as change-over contact 0
Degree of protection (NEMA) 12

Description

Illuminated pushbutton actuator, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 0.2 m, Color LED: Red, button plate: red, Button plate Blank, Rated operational voltage LED: 24 V AC/DC, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7 , Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
