IE TP cable;M12/RJ45;4x2;50m;X-cod.;IP65/67;Cat6A;halogen-free;PUR;robust
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
396,06 €
per pcs
EAN: 4019169858076
MPN: 6XV1878-5TN50
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | IE TP cable;M12/RJ45;4x2;50m;X-cod.;IP65/67;Cat6A;halogen-free;PUR;robust |
| Brand | Siemens |
| Categories |
Ethernet cable (network)
|
| Country of origin | DE |
| Harmonized System Code | 8544 4290 00 |
| UV resistant | No |
| Nominal cross section conductor | 0 mm² |
| Material core insulation | Other |
| Weight | 0 kg/km |
| Flame retardant | No |
| Colour outer sheath | Green |
| Diameter conductor | 0 mm |
| Material outer sheath | Polyurethane (PUR) |
| Permitted cable outer temperature during assembling/handling | -40-80 °C |
| Permitted cable outer temperature after assembling without vibration | -30-80 °C |
| Number of stranding elements | 0 |
| Number of cores | 8 |
| Suitable for underground installation | No |
| Halogen free according to IEC 60754-2 | No |
| Insulation integrity according to IEC 60331 | No |
| Low smoke according to IEC 61034-2 | No |
| Outer diameter approx. | 6.5 mm |
| Low smoke (according to EN 61034-2) | No |
| NVP value | 68 % |
| Halogen free according to EN 60754-1/2 | No |
| Oil resistant according to IEC 60811-404 | No |
| Oil resistant (according to IEC 60811-404) | No |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Reaction-to-fire according to EN 13501-6: Class | None |
| Min. permitted bending radius, moving application with forced guidance | 65 mm |
| Min. permitted bending radius, moving application/free movement | 65 mm |
| Min. permitted bending radius, stationary application/permanent installation | 65 mm |
| Specification material outer sheath | Other |
| Core identification according to HD 308 S2 | No |
| Suitable as telephone cable | No |
| Suitable as computer data cable | No |
| Suitable as signalling cable | No |
| Certified for shipboard application | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
Packing details
| Packing level 1 | 4019169858076 |
Description

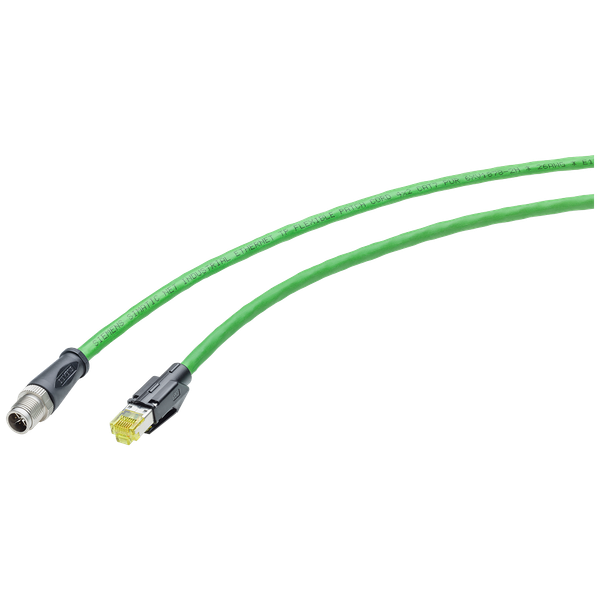

IE TP Cord M12-180/RJ45-180 pre-assembled IE Flexible Cable, with 1x M12 plug (X-coded); 180 degrees cable outlet; 1x RJ45 plug; 180-degree cable outlet; length 50 m.
