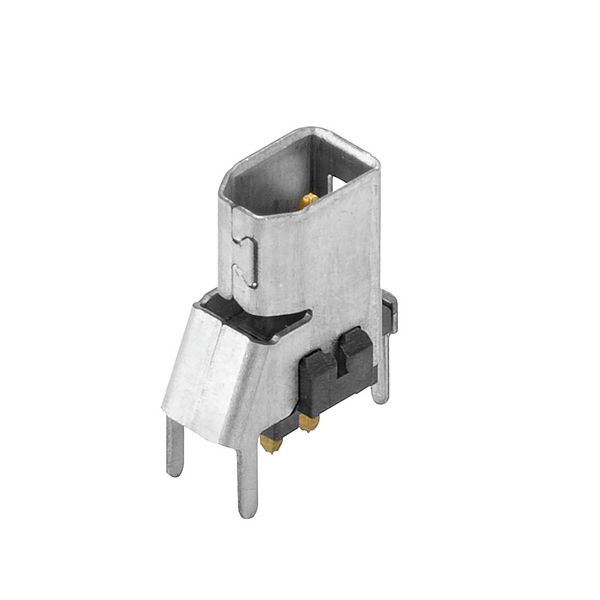

PCB Plug-In Connector SPE (Single Pair Ethernet), Clip-on flange, THT/THR solder connection, 1.80 mm Poles 2, 180° SPL 2.1 mm, Ni/Au, silver, Tape
Order only
Minimal order quantity: 100
EAN: 4064675119265
MPN: 2795170000
Box: 1
Price (excl. VAT)
1,72 €
per unit
MOQ: 100
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | PCB plug-in connector, SPE (Single Pair Ethernet), Clip-on flange, THT/THR solder connection, 1.80 mm, Number of poles: 2, 180°, Solder pin length (l): 2.1 mm, Ni/Au, silver, Tape |
| Brand | Weidmüller |
| Categories |
PCB Connectors & Terminals
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC002637 |
| Type of connection | Printed circuit board to cable |
| Rated voltage | 72 V |
| Number of poles | 2 |
| Operating temperature | -40-85 °C |
| Type of electric connection | Soldering connection |
| Connector model | Fixed connector |
| Angle PCB/contact | 0°/180° (horizontal) |
| Rated current In | 4 A |
Packing details
| Packing level 1 | 4064675119265 |
Other Technical data
| Colour housing | Silver |
| Contact type | Pin |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Nickel/gold |
| Over voltage category | I |
| Pollution degree | 2 |
| Length pin | 2.1 mm |
| Modular spacing connections | 1.8 mm |
| Number of plug-in contact rows | 1 |
| Type of banding | Other |
| Modular spacing contacts | 1.8 mm |
| Material insulation body | Liquid crystal polymer |
| Type of PCB fastening | Connecting contact |
Description
Pluggable PCB connector for connecting data lines.
