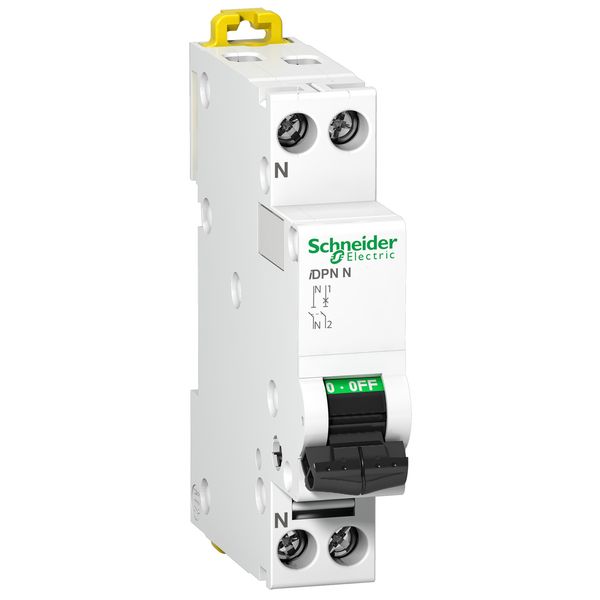

iDPN N 1P+N D6
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
13,95 €
EAN: 3606480382451
MPN: A9N21565
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | iDPN N 1P+N D6 |
| Brand | Schneider Electric |
| Categories |
Circuit breakers 6A
|
| Country of origin | FR |
| Harmonized System Code | 8536 2010 00 |
| Rated current | 6 A |
| Rated voltage | 230 V |
| Release characteristic | D |
| Width in number of modular spacings | 1 |
| Number of poles (total) | 2 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
Packing details
| Packing level 1 | 3606480382451 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 44 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 400 V |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 3 |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 0.75-16 mm² |
| Connectable conductor cross section multi-wired | 0.33-10 mm² |
| Ambient temperature during operating | -25-70 °C |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 0 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 0 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 0 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
Description
This Clario iDPN N product is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole and 6A In rated current and D tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. It is suitable for isolation in the industrial sector according to IEC/EN 60898-1 standard. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 78mm. The weight is 115g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
