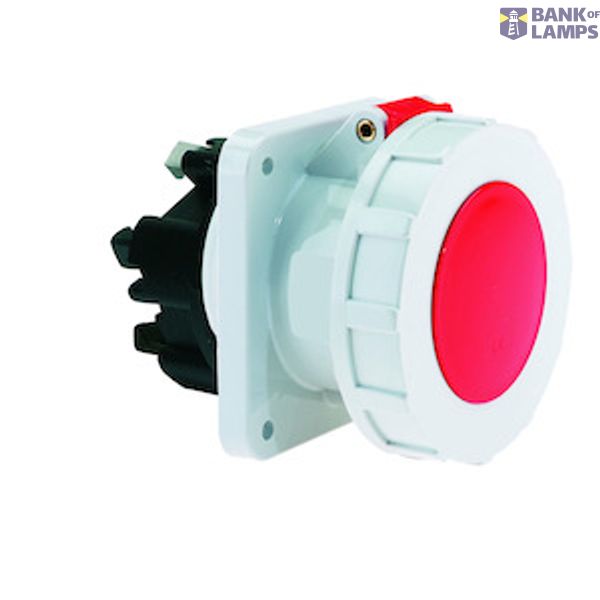

ICD 6h 63A 5P 400V IP67 107x100 QC TE Ni

Order only Not Available

Technical Information

Item condition	New
Manufacture name	ICD 6h 63A 5P 400V IP67 107x100 QC TE Ni
Brand	Bals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001317
Number of poles	5
Material	Plastic
IEC-amperage	63 A
Connection system	Screw less terminal
Rated voltage	380-415 V

Packing details

Packing level 1

4024941195409, 4024941195409

Other Technical data

RAL-number	3000
Rated frequency	50-60 Hz
Surface treatment contacts	Nickel-plated
Angle of plug	Straight
Contact material	CuZn
Degree of protection (IP)	IP67
Military model	No
Clock hour position	6 h
Identification colour	Red
Voltage according to EN 60309-2	400 V (50+60 Hz) red

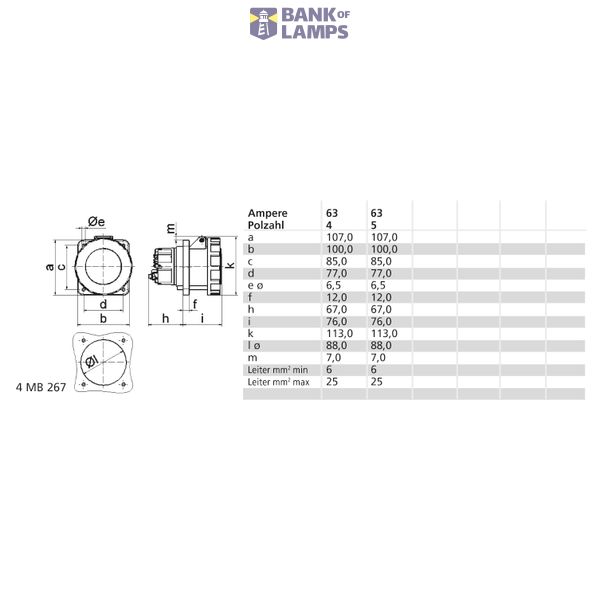

Drill hole distance vertical	85 mm
Drill hole distance horizontal	77 mm
Flange size vertical	107 mm
Flange size horizontal	100 mm

Downloads

Declaration RoHS Others Deep link REACH

Description

- Schroefloze klemmen
- Flensafmeting 107x100mm
- Hittebestendige contactdragers
- KONTEX contact
- Vernikkelde contacten
- Raamklemmen
- Beschermingsklasse IP67
