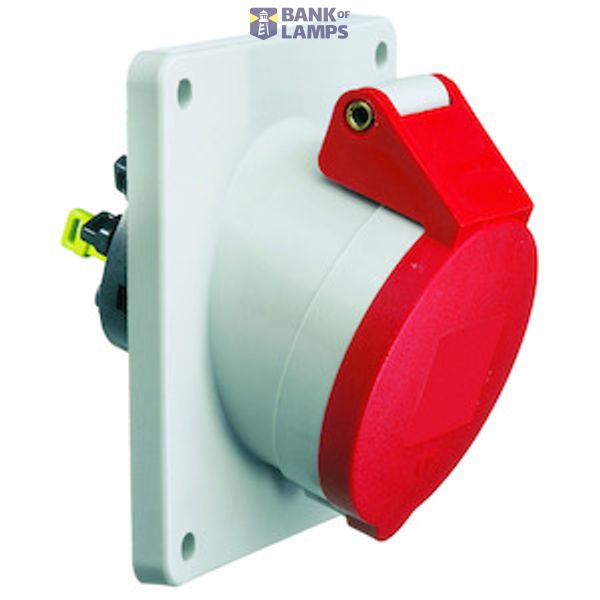

ICD 6h 32A 5P 400V IP44 100x92 QC TE Sch Ni image 1

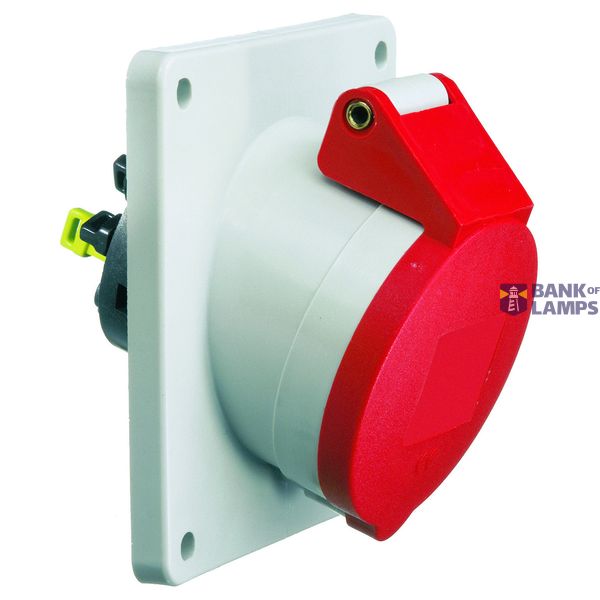

ICD 6h 32A 5P 400V IP44 100x92 QC TE Sch Ni image 2

ICD 6h 32A 5P 400V IP44 100x92 QC TE Sch Ni image 3

ICD 6h 32A 5P 400V IP44 100x92 QC TE Sch Ni image 4

ICD 6h 32A 5P 400V IP44 100x92 QC TE Sch Ni

Order only Not Available

Technical Information

Item condition	New
Manufacture name	ICD 6h 32A 5P 400V IP44 100x92 QC TE Sch Ni
Brand	Bals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001317
Number of poles	5
Material	Plastic
IEC-amperage	32 A
Connection system	Screw less terminal
Rated voltage	380-415 V

Packing details

Packing level 1

4024941128841

Other Technical data

RAL-number	3000
Cable entry	None
Rated frequency	50-60 Hz
Surface treatment contacts	Nickel-plated
Angle of plug	Angled
Contact material	CuZn
Degree of protection (IP)	IP44
Military model	No
Clock hour position	6 h
Identification colour	Red
Voltage according to EN 60309-2	400 V (50+60 Hz) red

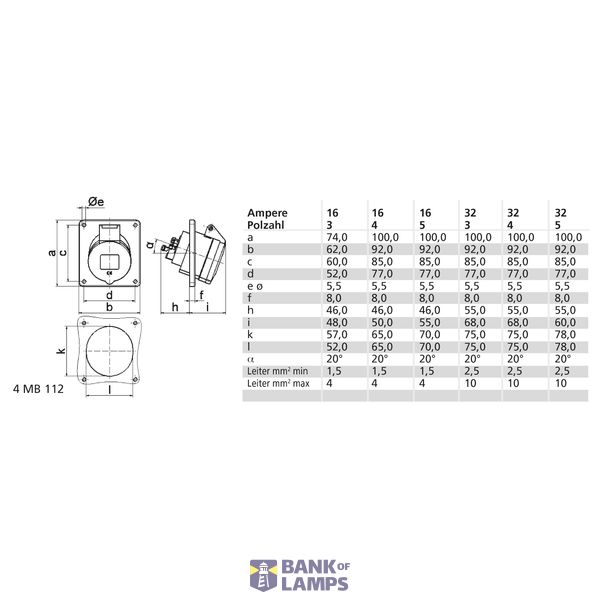

Drill hole distance vertical	85 mm
Drill hole distance horizontal	77 mm
Flange size vertical	100 mm
Flange size horizontal	92 mm

Downloads

Deep link REACH Declaration RoHS Others

Description

- Schroefloze klemmen
- KONTEX contact
- Flensafmeting 74x62 bij 16A 3p, 100x92 bij andere uitvoeringen
- Hoek 20°
- Hittebestendige contactdragers
- Vernikkelde contacten
- Beschermingsklasse IP44
