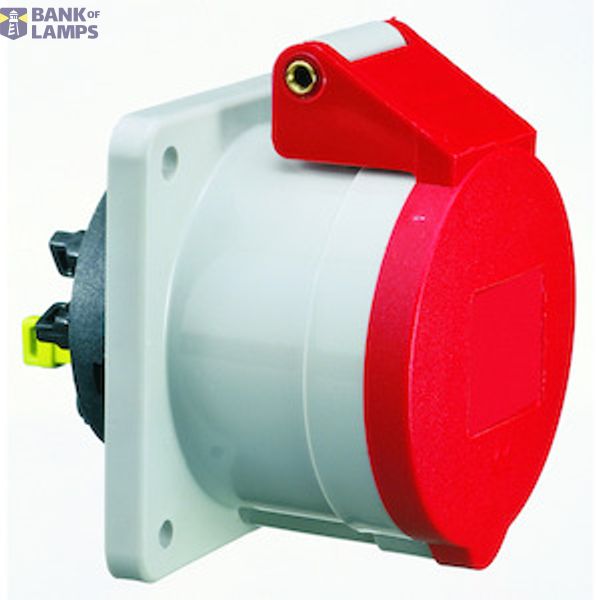

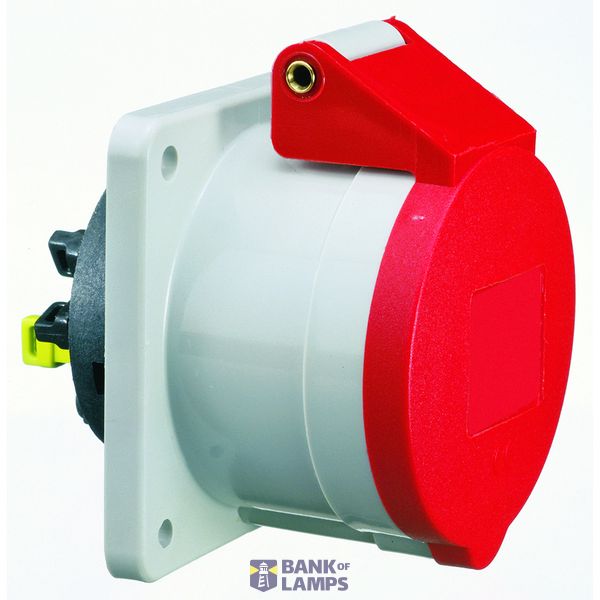

ICD 6h 16A 5P 400V IP44 72x65 QC
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | ICD 6h 16A 5P 400V IP44 72x65 QC |
| Brand | Bals |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001317 |
| Number of poles | 5 |
| Material | Plastic |
| IEC-amperage | 16 A |
| Connection system | Screw less terminal |
| Rated voltage | 380-415 V |
Packing details
| Packing level 1 | 4024941136815 |
Other Technical data
| RAL-number | 3000 |
| Cable entry | None |
| Rated frequency | 50-60 Hz |
| Surface treatment contacts | Untreated |
| Angle of plug | Straight |
| Contact material | CuZn |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Clock hour position | 6 h |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |

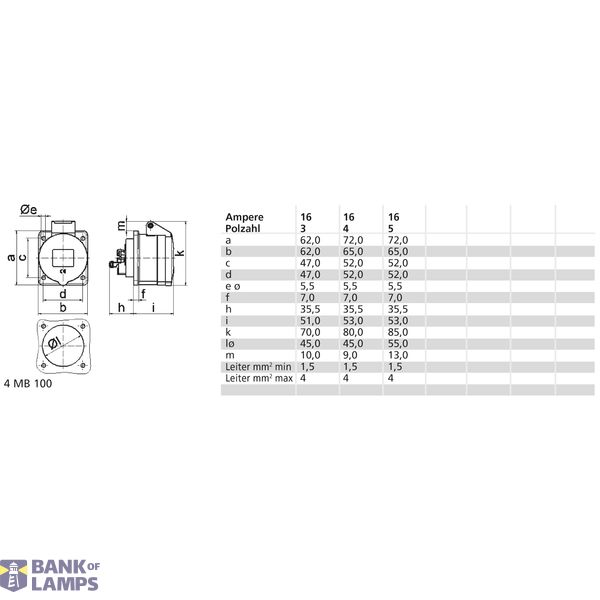

| Drill hole distance vertical | 52 mm |
| Drill hole distance horizontal | 52 mm |
| Flange size vertical | 72 mm |
| Flange size horizontal | 65 mm |
Downloads
Description
- Schroefloze klemmen
- KONTEX contact
- Flensafmeting 62x62mm bij 16A 3p, 72x65mm bij 16A 4/5p
- Beschermingsklasse IP44
- KONTEX contact
- Flensafmeting 62x62mm bij 16A 3p, 72x65mm bij 16A 4/5p
- Beschermingsklasse IP44
