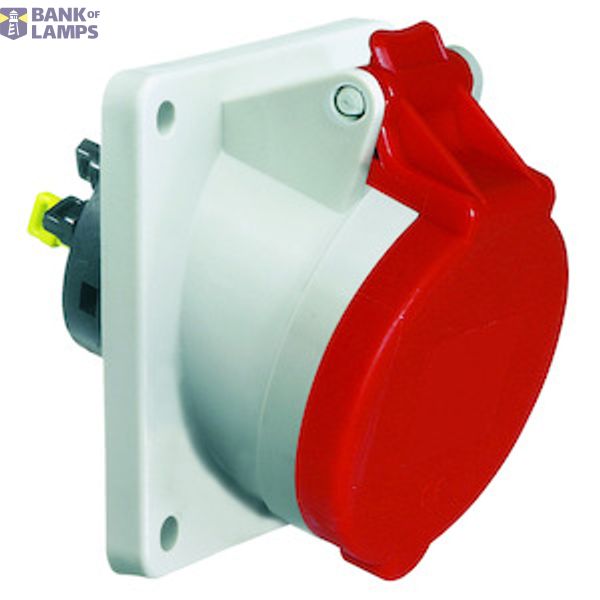

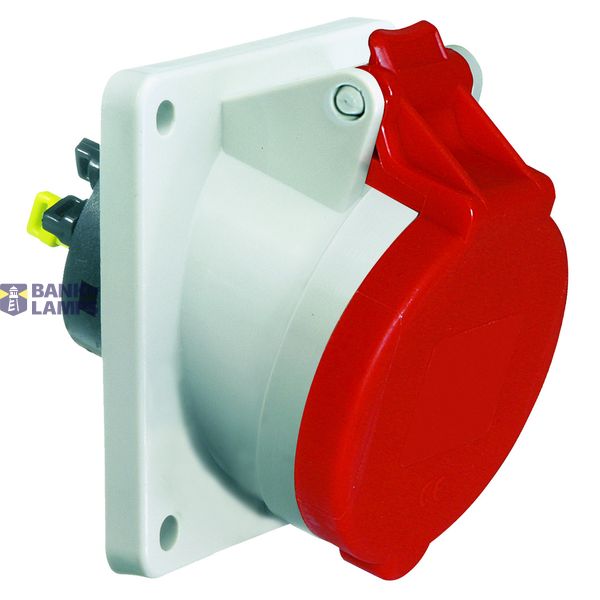

ICD 6h 16A 4P 400V IP44 85x85 QC Sch
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | ICD 6h 16A 4P 400V IP44 85x85 QC Sch |
| Brand | Bals |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001317 |
| Number of poles | 4 |
| Material | Plastic |
| IEC-amperage | 16 A |
| Connection system | Screw less terminal |
| Rated voltage | 380-415 V |
Packing details
| Packing level 1 | 4024941127530 |
Other Technical data
| RAL-number | 3000 |
| Cable entry | None |
| Rated frequency | 50-60 Hz |
| Surface treatment contacts | Untreated |
| Angle of plug | Angled |
| Contact material | CuZn |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Clock hour position | 6 h |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |

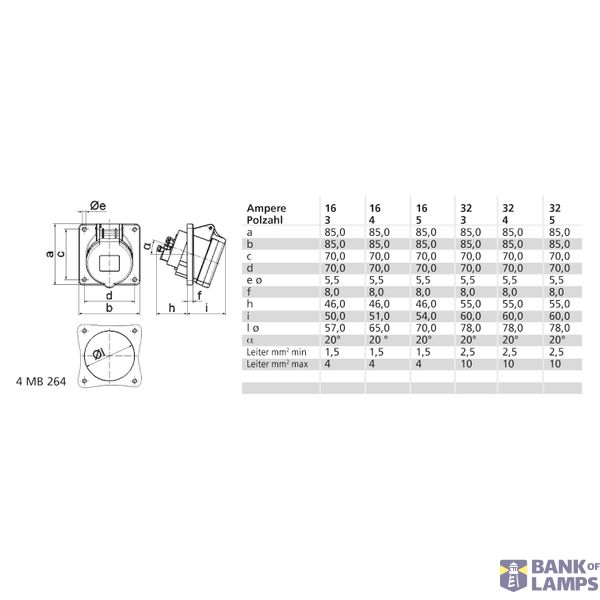

| Drill hole distance vertical | 70 mm |
| Drill hole distance horizontal | 70 mm |
| Flange size vertical | 85 mm |
| Flange size horizontal | 85 mm |
Downloads
Description
- Schroefloze klemmen
- Hoek 20°
- KONTEX contact
- Flensafmeting 85x85mm
- Beschermingsklasse IP44
- Hoek 20°
- KONTEX contact
- Flensafmeting 85x85mm
- Beschermingsklasse IP44
