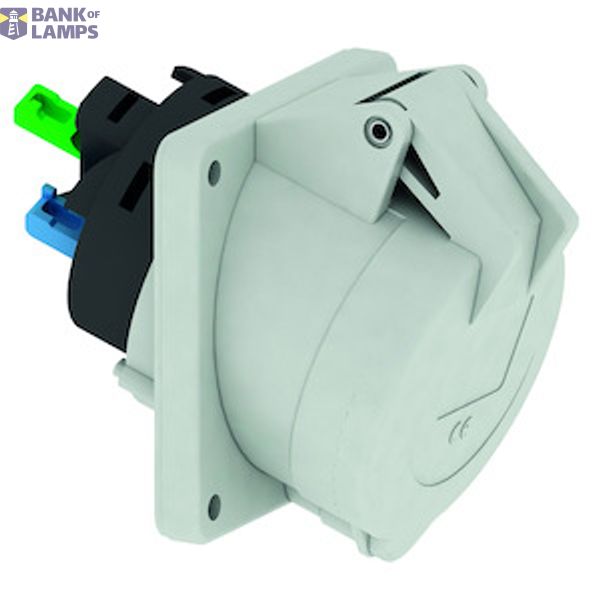

ICD 1h 32A 5P >50V IP44 85x85 Gr QC Sch Ni

Order only Not Available

Technical Information

Item condition	New
Manufacture name	ICD 1h 32A 5P >50V IP44 85x85 Gr QC Sch Ni
Brand	Bals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001317
Number of poles	5
Material	Plastic
IEC-amperage	32 A
Connection system	Screw less terminal

Packing level 1

4024941938785, 4024941938785

RAL-number	7035
Surface treatment contacts	Nickel-plated
Angle of plug	Angled
Contact material	CuZn
Degree of protection (IP)	IP44
Military model	No
Clock hour position	1 h
Identification colour	Grey
Voltage according to EN 60309-2	>50 V grey

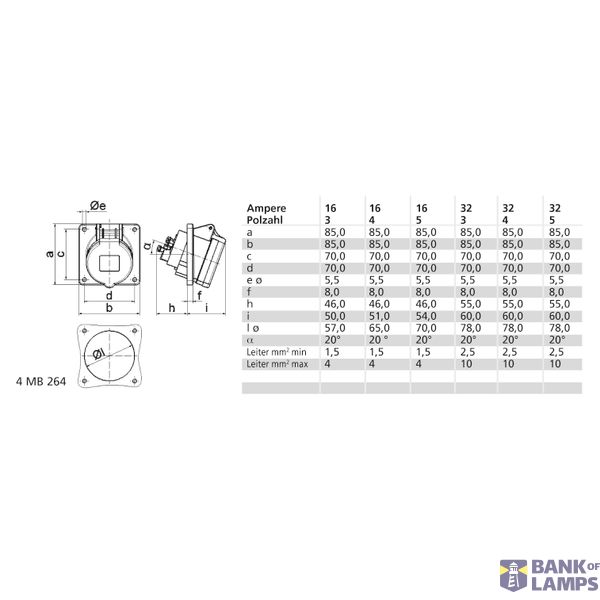

Drill hole distance vertical	70 mm
Drill hole distance horizontal	70 mm
Flange size vertical	85 mm
Flange size horizontal	85 mm

Deep link REACH Declaration RoHS Others

- Schroefloze klemmen
- Hoek 20°
- Hittebestendige contactdragers
- KONTEX contact
- Vernikkelde contacten
- Flens 85x85 mm
- Beschermingsklasse IP44
