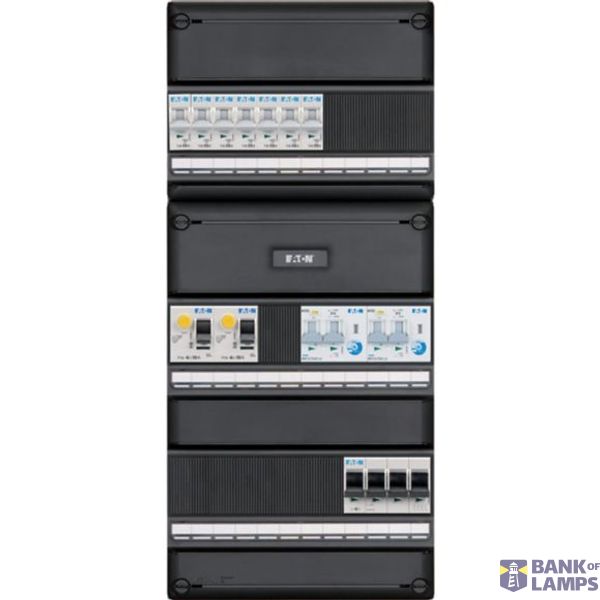

I-72V1400-HS-94+2AFDD Eaton Systeem 55 compact distribution board pre-wired AFDD
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | I-72V1400-HS-94+2AFDD Eaton Systeem 55 compact distribution board pre-wired AFDD |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC002288 |
| Mounting method | Surface mounted (plaster) |
| Protection | Miniature- / earth leakage circuit breaker |
| Degree of protection (IP) | IP3X |
Packing details
| Packing level 1 | 9010238148673 |
Other Technical data
| Width | 220 mm |
| Height | 330 mm |
| Depth | 95 mm |
| Lockable | No |
| With socket outlet | No |
| Number of phases | 1 |
| Extension possible | Yes |
| With transparent cover | No |
| Over voltage protection | No |
| Housing material | Plastic |
| Width in number of modular spacings | 12 |
| Built-in depth | 0 mm |
| Number of earth leakage circuit breakers | 2 |
| Number of earth leakage switches 300 mA | 0 |
| Number of earth leakage switches 30 mA | 2 |
| Number of direct groups | 2 |
| Number of groups behind earth leakage switch | 7 |
| Number of light groups | 7 |
| Number of poles main switch | 2 |
| With bell transformer | No |
| Cooker group | None |
| Cooker group suitable as power current group | No |
| Total number of groups | 9 |
| Main switch rated current | 40 A |
| Suitable for data | No |
| Protection main switch | No |
| Protection incoming RCD | No |
| Protection high integrity | No |
| Protection split load | No |
| Protection dual RCD | No |
| With meter | No |
Description
Systeem 55 compact distribution board FLEX, single-phase, miniature circuit-breaker 7 groups 2x residual current circuit-breaker 2x Arc fault detection device AFDD+ 1x main switch; H = 495 mm; W = 220 mm
