Phoenix Contact

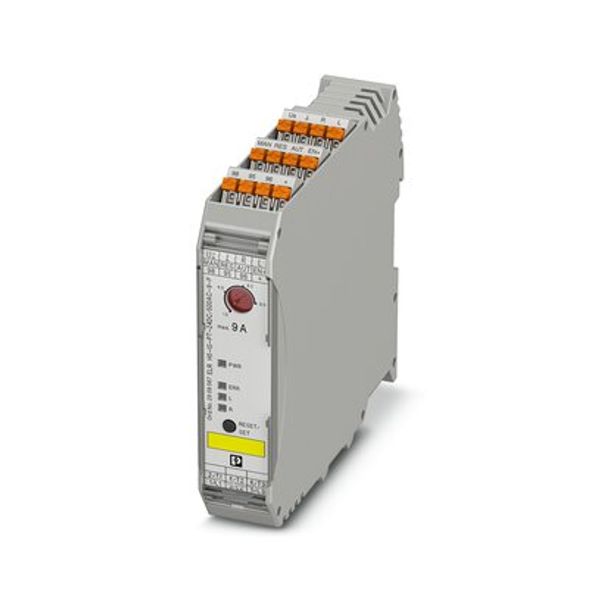

ELR H5-IS-PT- 24DC/500AC-9-P - Hybrid motor starter

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
153,26 € per pcs
This price is valid until 24.12.25
EAN: 4055626425498
MPN: 2909567
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name ELR H5-IS-PT- 24DC/500AC-9-P - Hybrid motor starter
Brand Phoenix Contact
Categories Motor Starters
Country of origin DE
Harmonized System Code 8537 1098 00
Rated operation power at AC-3, 400 V 0 kW
Overload release current setting 1.5-9 A
Rated control supply voltage at DC 19.2 V
Degree of protection (IP) IP20
With short-circuit release No
Voltage type for actuating DC
Type of motor starter Reversing starter
Rated operation current at AC-3, 400 V 0 A

Packing details

Packing level 1 4055626425498, 4055626425498

Other Technical data

Width 22.5 mm
Height 107.5 mm
Depth 114 mm
Number of command positions 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Suitable for emergency stop Yes
Rated operation current Ie 9 A
Number of indicator lights 0
External reset possible Yes
Rail mounting possible Yes
Release class CLASS 10
Type of electrical connection of main circuit Spring clamp connection
Type of electrical connection for auxiliary- and control current circuit Spring clamp connection
Rated operation power at AC-3, 230 V, 3-phase 0 kW
Rated power, 460 V, 60 Hz, 3-phase 0 kW
Rated power, 575 V, 60 Hz, 3-phase 0 kW
Ambient temperature, upper operating limit 0 °C
Temperature compensated overload protection No
Rated conditional short-circuit current, type 2, 400 V 0 A
Rated conditional short-circuit current, type 2, 230 V 0 A
Rated conditional short-circuit current, type 1, 480 Y/277 V 0 A
Rated conditional short-circuit current, type 1, 600 Y/347 V 0 A

Description

Hybrid motor starter; functions: Start motor, Reverse motor, Motor protection, Emergency stop, Modular; input: 24 V DC; output: 3~, 500 V AC, 9 A; connection method: Push-in connection
