Flat Strip HVI 20 stripping tool for HVI Conductors -KIT, Cross Section 19mm²

Order only

EAN: 4013364144972

MPN: 597220

Package: 1

Price (excl. VAT)

411,48 €

per unit

MOQ: 1

EDT to our warehouse: 1-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Stripping Tool HVI Strip 20 Kit for HVI Conductors
Brand	Dehn
Categories	Cable stripping tool
Country of origin*	IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8205 5980 00
ETIM	EC000163
Depth of notch adjustable	Yes
Exchangeable knives	Yes
Strip range diameter	20 mm
Strip range cross-section	19 mm²

Packing details

Packing level 1

4013364144972, 4013364144972

Other Technical data

Spiral cut

Yes

Downloads

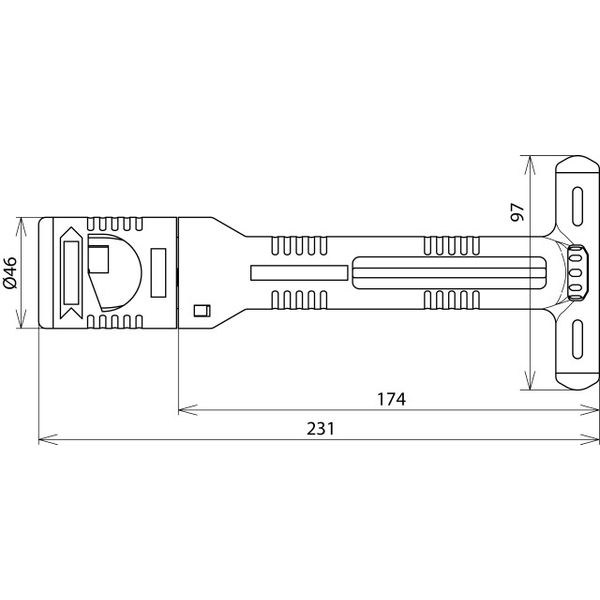

Product data sheet Dimensioned drawing

Description

HVI strip 20 tool for stripping the semi-conductive sheath and the PE insulation of the HVI Conductor and HVI light Conductor with an outer diameter of 20 mm. The stripping length is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. Complete with handle and cutting head.
