HVI power Conductor D 27mm Cu black w. conn. elements min. order L 6.0

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

1 806,78 €

This price is valid until 31.12.25

EAN: 4013364272224

MPN: 819165

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	HVI power Conductor D 27mm Cu black w. conn. elements min. order L 6.0
Brand	Dehn
Categories	Lightning Protection Components
Country of origin	DE
Harmonized System Code	8544 6010 00
Conductor cross section	25 mm²
Diameter conductor	5.6 mm
Conductor material	Copper
Conductor category	Class 2 = stranded
Sheathing material	Crosslinked polyethylene (XLPE)

Packing details

Packing level 1

4013364272224, 4013364272224

Other Technical data

Colour	Black
Surface protection	Untreated
Weight	85.4 kg/100 m
Suitable for EX-applications	Yes
Number of strands	7
High-voltage-proof insulated model	Yes
Material insulation	Polyethylene (PE)
Max. equivalent separation distance s (in air)	0.9 m
Max. equivalent separation distance s (solid building materials)	1.8 m
Outer diameter incl. sheat/cover	27 mm
Max. tensile load	1200 N

Downloads

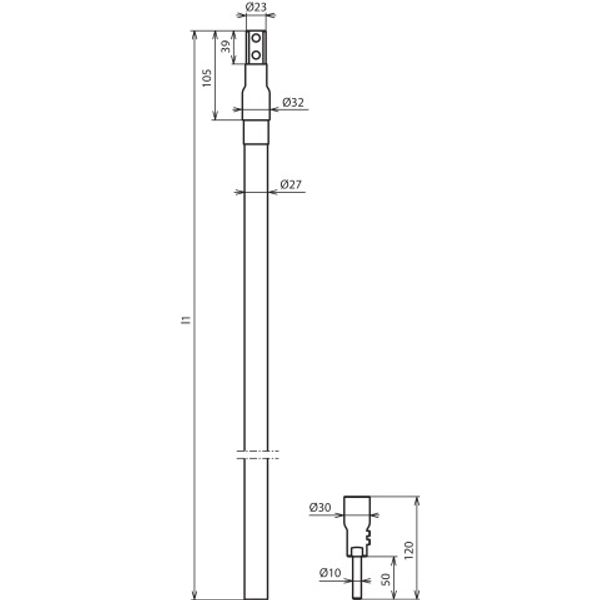

Product data sheet Dimensioned drawing

Description

Air-termination mast with HVI power Conductor (high-voltage-resistant, insulated down conductor), for keeping the separation distance from conductive parts according to IEC/EN 62305-3 in order to prevent dangerous flashover between parts of the external lightning protection system and indoor conductive parts (electrical installation, pipes, etc.). In order to avoid creeping discharge, the HVI power Conductor has a special outer sheath which makes it possible to discharge high lightning impulse voltages to a reference potential. Pre-assembled (black), with head piece and connection element (connection element enclosed loose). Equivalent separation distance s ≤ 90 cm (in air), s ≤ 180 cm (solid material).
