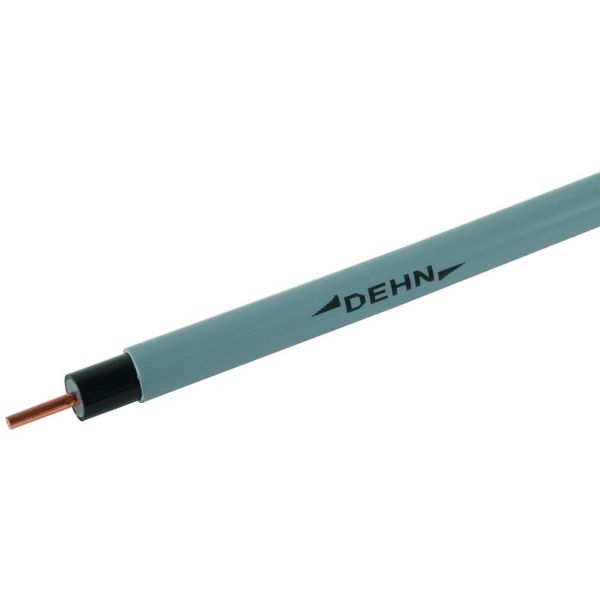

HVI light Conductor D 20mm grey cut to length: (6000 mm conductor incl

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

713,10 €

This price is valid until 31.12.25

EAN: 4013364223158

MPN: 819129

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	HVI light Conductor D 20mm grey cut to length: (6000 mm conductor incl
Brand	Dehn
Categories	Lightning Protection Components
Country of origin	DE
Harmonized System Code	8544 6010 00
Conductor cross section	19 mm²
Diameter conductor	5 mm
Conductor material	Copper
Conductor category	Class 1 = solid
Sheathing material	Polyvinyl chloride (PVC)

Packing details

Packing level 1

4013364223158, 4013364223158

Other Technical data

Colour	Grey
Surface protection	Untreated
Weight	52 kg/100 m
Number of strands	1
High-voltage-proof insulated model	Yes
Material insulation	Polyethylene (PE)
Max. equivalent separation distance s (in air)	0.45 m
Max. equivalent separation distance s (solid building materials)	0.9 m
Outer diameter incl. sheat/cover	20 mm
Max. tensile load	950 N

Downloads

Product data sheet Deep link REACH

Description

HVI light Conductor cut to length (high-voltage-resistant insulated down conductor, for keeping the separation distance to electrically conductive parts according to IEC 62305-3, to prevent dangerous flashover from external lightning protection components to internal conductive parts (electrical installation, pipes, etc.). Creeping discharge is avoided by the outer special sheath of the HVI Conductor, and high lightning impulse voltages can be discharged to a reference potential. The HVI light Conductor suits for installations where at the end of an adjustment range an equipotential bonding connection with the structural equipotential bonding system is not realised. Design for on site assembly (cut to length according to order 6m - 70m - grey). Equivalent separation distance s ≤ 45 cm (in air), s ≤ 90 cm (solid material).
