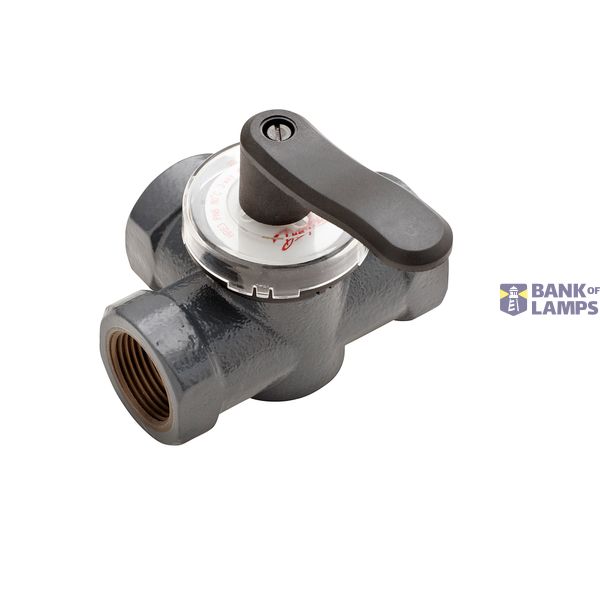

HRE 3 PN6 20/6.3 roterend 3-weg Rp3/4
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | HRE 3 PN6 20/6.3 rotary 3-way Rp3/4 |
| Brand | Danfoss |
| Country of origin* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8481 8011 00 |
| ETIM | EC011852 |
| Material quality | Cast iron GG 25 (GJL-250) |
| Connections | Internal thread metric |
| Max. pressure difference in opened position | 1 bar |
Packing details
| Packing level 1 | 5710104033341 |
Other Technical data
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| Surface protection | Untreated |
| Suitable for manual operation | No |
| Explosion-proof | No |
| Article compression class | PN 6 |
| Max. medium temperature (continuous) | 110 °C |
| Min. medium temperature (continuous) | 2 °C |
| Outer pipe diameter all connections | 20 mm |
| With coupling connection 3 | No |
| Length of connection 1 | 0 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Length of connection 3 | 0 mm |
| Working length connection 3 | 0 mm |
| Operating time | 0 s |
| With coupling connection 1 | Yes |
| With coupling connection 2 | Yes |
| Housing material | Cast iron |
| Kvs value | 6.3 |
| With end contacts | No |
| Max. electric power input | 0 VA |
| Adjustable operating range | No |
| Auxiliary contacts | No |
| Leakage loss of Kvs value | 0 % |
| Control ratio (Svo) | 0 % |
| Closing pressure | 1 bar |
| KVS value for bypass | 0 |
| Leakage loss of KVS value for bypass | 0 % |
| Installation method, distributive | No |
| Adjustable position feedback signal | No |
