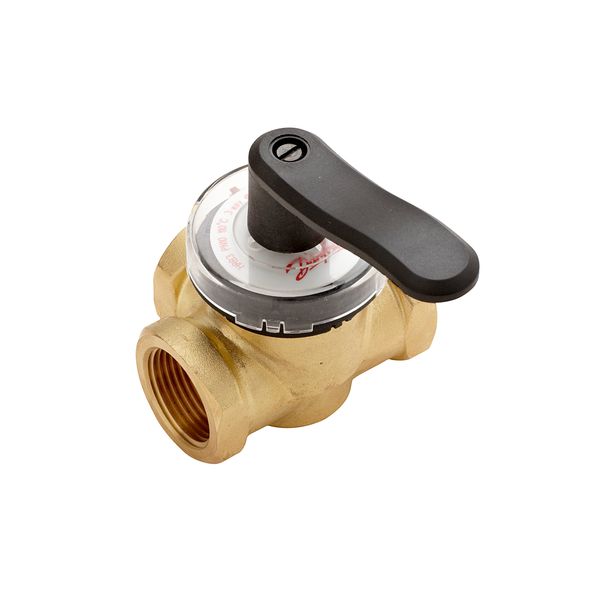

HRB 3 PN10 32/16 rotary 3-way Rp1 1/4
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
101,20 €
EAN: 5710104033662
MPN: 065Z0408
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HRB 3 PN10 32/16 rotary 3-way Rp1 1/4 |
| Brand | Danfoss |
| Categories |
Control Valves and Actuators
|
| Country of origin | DK |
| Harmonized System Code | 8481 8011 00 |
| Material quality | Dezincification resistant brass (DZR) |
| Connections | Internal thread metric |
| Max. pressure difference in opened position | 2 bar |
Packing details
| Packing level 1 | 5710104033662 |
Other Technical data
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| Surface protection | Untreated |
| Suitable for manual operation | No |
| Explosion-proof | No |
| Article compression class | PN 10 |
| Max. medium temperature (continuous) | 110 °C |
| Min. medium temperature (continuous) | 2 °C |
| Outer pipe diameter all connections | 32 mm |
| With coupling connection 3 | No |
| Length of connection 1 | 0 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Length of connection 3 | 0 mm |
| Working length connection 3 | 0 mm |
| Operating time | 0 s |
| With coupling connection 1 | Yes |
| With coupling connection 2 | Yes |
| Housing material | Brass |
| Kvs value | 16 |
| With end contacts | No |
| Max. electric power input | 0 VA |
| Adjustable operating range | No |
| Auxiliary contacts | No |
| Leakage loss of Kvs value | 0 % |
| Control ratio (Svo) | 0 % |
| Closing pressure | 2 bar |
| KVS value for bypass | 0 |
| Leakage loss of KVS value for bypass | 0 % |
| Installation method, distributive | No |
| Adjustable position feedback signal | No |
