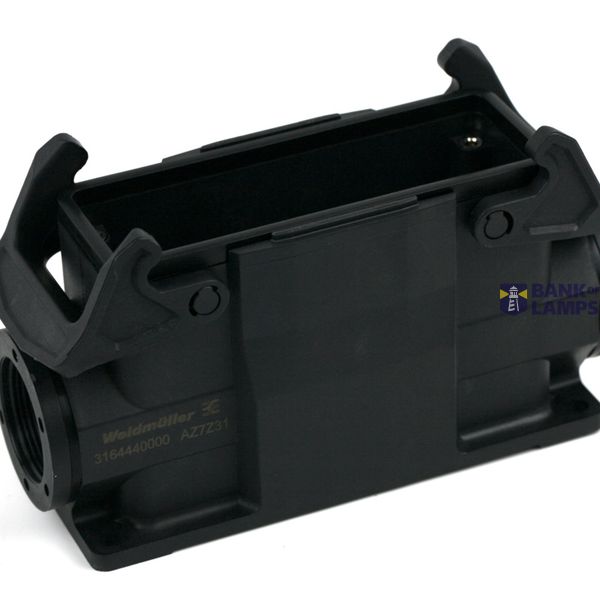

Housing industry connectors, Base housing, Side-locking clamp on lower image 1
Weidmüller

Housing industry connectors, Base housing, Side-locking clamp on lower

Order only
EAN: 4099987800747
MPN: 3164440000
Package: 1
Price (excl. VAT)
18,39 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts

Technical Information

Item condition New
Manufacture name Housing industry connectors, Base housing, Side-locking clamp on lower
Brand Weidmüller
Categories Rectangular Connectors
Country of origin* CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8538 9099 00
ETIM EC000437
Width 57 mm
Height 81.7 mm
Depth 159 mm

Packing details

Packing level 1 4099987800747, 4099987800747

Other Technical data

With hinged lid No
Colour housing Black
Locking mechanism Double locking levers
Number of conduit inlets 2
With cable screw gland No
EMC-version No
Housing material Plastic
Coating housing Plastic-coated
Operating temperature -40-125 °C
With distance piece No
With sealing Yes
Type of housing Socket case
Degree of protection (IP), mounted IP65
Material adapter plate Plastic
Position cable feed Sideways
Position of the shackle Base unit
Mounting method of the cable gland Metric

Description

The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
