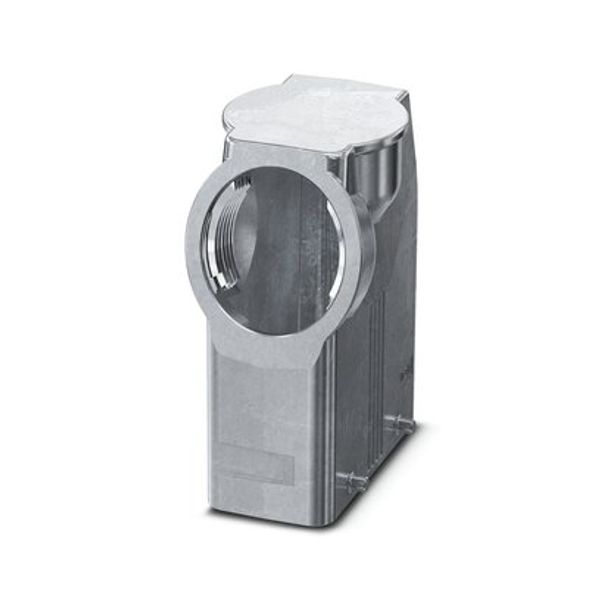

HC-STA-B16-HHFD-1STM50-EL-AL - Housing

Name: HC-STA-B16-HHFD-1STM50-EL-AL - Housing
Brand: Phoenix Contact
Price: 25.230 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

25,23 € per pcs

This price is valid until 24.12.25

EAN: 4055626815046

MPN: 1082551

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	HC-STA-B16-HHFD-1STM50-EL-AL - Housing
Brand	Phoenix Contact
Categories	Rectangular Connectors
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Width	60 mm
Height	110.8 mm
Depth	92.9 mm

Packing details

Packing level 1

4055626815046, 4055626815046

Other Technical data

UV resistant	No
With hinged lid	No
Colour housing	Other
Locking mechanism	Double locking levers
Number of conduit inlets	1
With cable screw gland	No
EMC-version	Yes
Housing material	Aluminium
Coating housing	Uncoated
Operating temperature	-40-125 °C
Inflammability class of insulation material according to with UL94	Other
Impact strength	IK09
With distance piece	No
Number of openings	0
With sealing	No
Type of housing	Other
Degree of protection (IP), mounted	IP66
Position cable feed	Sideways
Position of the shackle	None
Mounting method of the cable gland	Metric

Description

Sleeve housing B16, for double locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, lateral, 1x M50, height: 110.8 mm, cable gland: none, Standard
