Phoenix Contact

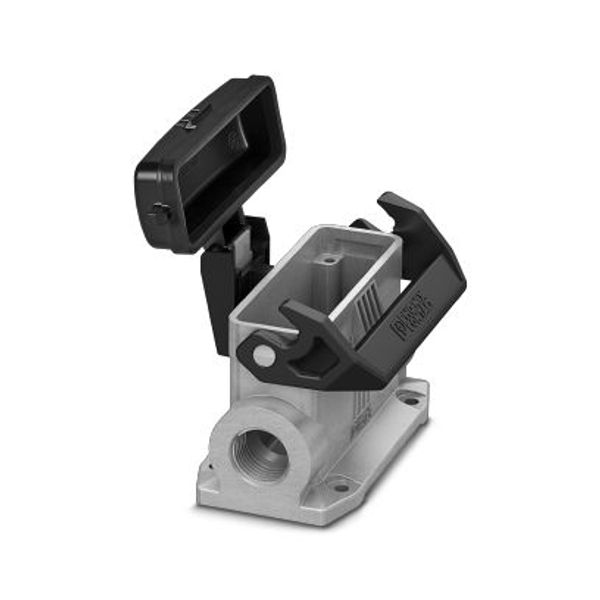

HC-STA-D25-SLWSC-2SSP21-EL-AL - Housing

Order only
Price (excl. VAT):
16,84 € per pcs
This price is valid until 24.12.25
EAN: 4055626371399
MPN: 1424399
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name HC-STA-D25-SLWSC-2SSP21-EL-AL - Housing
Brand Phoenix Contact
Categories Rectangular Connectors
Country of origin CN
Harmonized System Code 8538 9099 00
Width 51 mm
Height 57 mm
Depth 80 mm

Packing details

Packing level 1 4055626371399, 4055626371399

Other Technical data

UV resistant No
With hinged lid Yes
Colour housing Other
Locking mechanism Single locking lever
Number of conduit inlets 2
With cable screw gland No
EMC-version Yes
Housing material Aluminium
Coating housing Uncoated
Operating temperature -40-125 °C
Inflammability class of insulation material according to with UL94 Other
Impact strength IK08
With distance piece No
Number of openings 0
With sealing No
Type of housing Socket case
Degree of protection (IP), mounted IP66
Position cable feed Sideways
Position of the shackle Cover
Mounting method of the cable gland PG

Description

Box mounting bases D25, with single locking latch, material: Die-cast aluminum, salt water resistant, protective cover material: PC, cable outlets: 2, lateral, 2x Pg21, height: 57 mm, cable gland: none, protective cover: yes, Standard

Accessories

HC-BS-PG21 - Screw plug
Order only
Phoenix Contact
HC-BS-PG21 - Screw plug
2,69 € per pcs
This price is valid until 24.12.25
EAN: 4017918135423
MPN: 1674529
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
WP-G HF IP69K PG21 BK - Screw connection
Order only
Phoenix Contact
WP-G HF IP69K PG21 BK - Screw connection
3,87 € per pcs
This price is valid until 24.12.25
Subtotal: 96,75 € MOQ: 25
EAN: 4046356709859
MPN: 3240878
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
WP-G HF IP66 PG21 BK - Screw connection
Order only
Phoenix Contact
WP-G HF IP66 PG21 BK - Screw connection
3,32 € per pcs
This price is valid until 24.12.25
Subtotal: 83,00 € MOQ: 25
EAN: 4046356709996
MPN: 3240892
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
WP-GA HF IP69K PG21 BK - Screw connection
Order only
Phoenix Contact
WP-GA HF IP69K PG21 BK - Screw connection
6,74 € per pcs
This price is valid until 24.12.25
Subtotal: 168,50 € MOQ: 25
EAN: 4046356710138
MPN: 3240906
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
WP-GA HF IP66 PG21 BK - Screw connection
Order only
Phoenix Contact
WP-GA HF IP66 PG21 BK - Screw connection
6,04 € per pcs
This price is valid until 24.12.25
Subtotal: 151,00 € MOQ: 25
EAN: 4046356710275
MPN: 3240920
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
WP-GR HF IP69K PG21 BK - Screw connection
Order only
Phoenix Contact
WP-GR HF IP69K PG21 BK - Screw connection
7,54 € per pcs
This price is valid until 24.12.25
Subtotal: 75,40 € MOQ: 10
EAN: 4046356710411
MPN: 3240934
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
WP-GR HF IP66 PG21 BK - Screw connection
Order only
Phoenix Contact
WP-GR HF IP66 PG21 BK - Screw connection
6,96 € per pcs
This price is valid until 24.12.25
Subtotal: 69,60 € MOQ: 10
EAN: 4046356710558
MPN: 3240948
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
G-INS-PG21-M68N-NNES-S - Cable gland
Order only
Phoenix Contact
G-INS-PG21-M68N-NNES-S - Cable gland
3,08 € per pcs
This price is valid until 24.12.25
Subtotal: 15,40 € MOQ: 5
EAN: 4046356923095
MPN: 1411175
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
G-INSEC-PG21-M68N-NNES-S - Cable gland
Order only
Phoenix Contact
G-INSEC-PG21-M68N-NNES-S - Cable gland
9,62 € per pcs
This price is valid until 24.12.25
Subtotal: 48,10 € MOQ: 5
EAN: 4046356923323
MPN: 1411200
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
A-INSP-PG21-65N-P-BK - Screw plug
Order only
Phoenix Contact
A-INSP-PG21-65N-P-BK - Screw plug
0,397 € per pcs
This price is valid until 24.12.25
Subtotal: 3,97 € MOQ: 10
EAN: 4055626038575
MPN: 1415214
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
