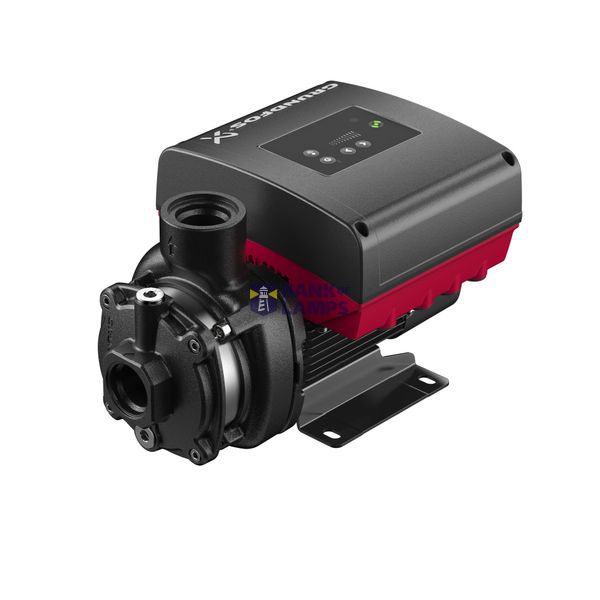

Horizontal multistage pump CME3-5 A-R-A-E-AQQE U-A-D-N 1x230V HR
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Horizontal multistage pump CME3-5 A-R-A-E-AQQE U-A-D-N 1x230V HR |
| Brand | GRUNDFOS |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7075 00 |
| ETIM | EC011334 |
| Nominal current | 5.88 A |
| Model | Horizontal |
| Weight | 15.315 kg |
| Number of phases | 1 |
| Max. static height | 46 m |
| Flange shape | Other |
| Rotational speed | 3480 1/min |
| Ambient temperature | -20 °C |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |
| Electrical connection | Terminals |
| Rated voltage | 200 V |
| Material of connection | Cast iron |
| Built-in length | 362 mm |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP55 |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Stainless steel |
| Motor power output (P2) per motor | 1.1 kW |
| Minimum Efficiency Index (MEI) | 0.7 |
| Volume flow rate (BEP) | 3.72 m³/h |
| Discharge head at flow rate (BEP) | 490.2 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Standard motor | Yes |
| Motor efficiency class | IE5 |
| Communication | Built-in and prepared |
| With protection against dry running | No |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | Yes |
| Supporting protocol for Modbus RTU | Yes |
| Supporting protocol for BACnet MS/TP | Yes |
| Supporting protocol for BACnet IP | Yes |
| Supporting protocol for LON/LONWorks | Yes |
| Supporting protocol for LIN Bus | No |
| Self-priming | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Cast iron |
| Pump height | 362 mm |
| Insulation class according to IEC | F |
| Motor with extended shaft | No |
| Material quality pump casing | Cast iron GG 20 (GJL-200) |
| Medium temperature (continuous) | -20 °C |
| Material quality impeller/pump wheel | Stainless steel 304 (1.4301) |
| Connection inlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Nominal diameter connection inlet side | 1 inch (25) |
| Nominal diameter connection outlet side | 1 inch (25) |
| Material quality connection | Cast iron GG 20 (GJL-200) |
| Connection outlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Flange compression stage connection inlet side | PN 16 |
| Flange compression stage connection outlet side | PN 16 |
Packing details
| Packing level 1 | 5711494281992, 5711494281992 |
Downloads
Description
Compact, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. SS shaft, impellers and chambers. Cast iron inlet, discharge parts. The mechanical shaft seal. Internal Whitworth pipe threads, Rp (ISO 7/1).
