Horizontal multistage pump CME 1-9 A-R-G-E-AQQE U-A-D-N 1x230V
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Horizontal multistage pump CME 1-9 A-R-G-E-AQQE U-A-D-N 1x230V |
| Brand | GRUNDFOS |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7075 00 |
| ETIM | EC011334 |
| Nominal current | 7.97 A |
| Model | Horizontal |
| Weight | 18.647 kg |
| Number of phases | 1 |
| Max. static height | 82.2 m |
| Flange shape | Other |
| Rotational speed | 3480 1/min |
| Ambient temperature | -20 °C |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |

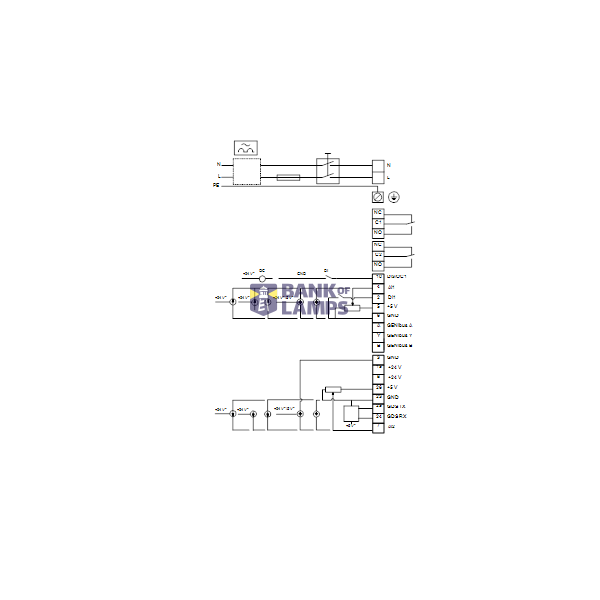

| Electrical connection | Terminals |
| Rated voltage | 200 V |
| Material of connection | Stainless steel |

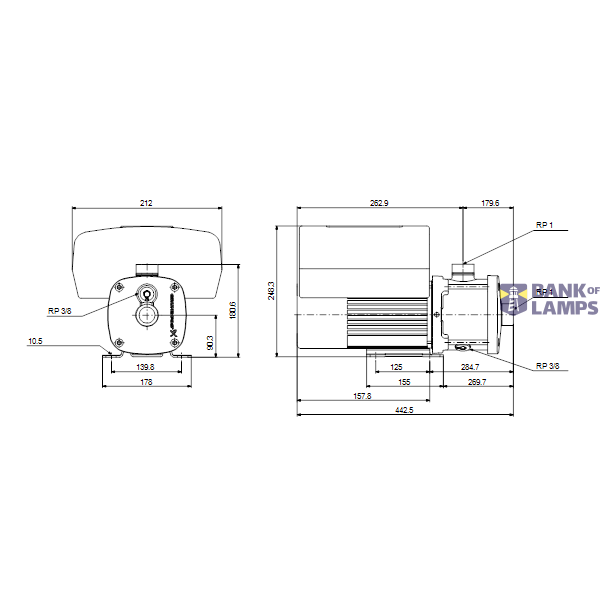

| Built-in length | 443 mm |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP55 |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Stainless steel |
| Motor power output (P2) per motor | 1.5 kW |
| Minimum Efficiency Index (MEI) | 0.68 |
| Volume flow rate (BEP) | 2.04 m³/h |
| Discharge head at flow rate (BEP) | 800.99 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Standard motor | Yes |
| Motor efficiency class | IE5 |
| Communication | Built-in and prepared |
| With protection against dry running | No |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | Yes |
| Supporting protocol for Modbus RTU | Yes |
| Supporting protocol for BACnet MS/TP | Yes |
| Supporting protocol for BACnet IP | Yes |
| Supporting protocol for LON/LONWorks | Yes |
| Supporting protocol for LIN Bus | No |
| Self-priming | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 16 bar |
| Material pump casing | Stainless steel |
| Pump height | 443 mm |
| Insulation class according to IEC | F |
| Motor with extended shaft | No |
| Material quality pump casing | Stainless steel 316 (1.4401) |
| Medium temperature (continuous) | -20 °C |
| Material quality impeller/pump wheel | Stainless steel 316 (1.4401) |
| Connection inlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Nominal diameter connection inlet side | 1 inch (25) |
| Nominal diameter connection outlet side | 1 inch (25) |
| Material quality connection | Stainless steel 316 (1.4401) |
| Connection outlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Flange compression stage connection inlet side | PN 16 |
| Flange compression stage connection outlet side | PN 16 |
Packing details
| Packing level 1 | 5711494287864, 5711494287864 |
Downloads
Description

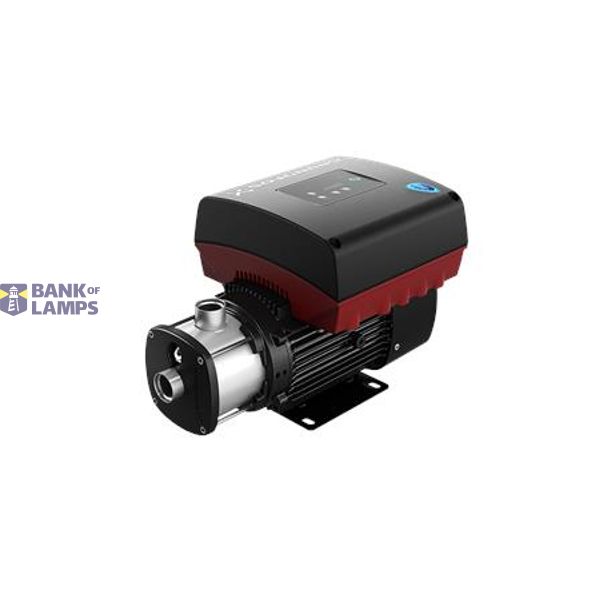

Compact, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Wetted parts are in high-grade SS. The mechanical shaft seal, unbalanced O-ring seal. Internal Whitworth pipe threads, Rp (ISO 7/1).
