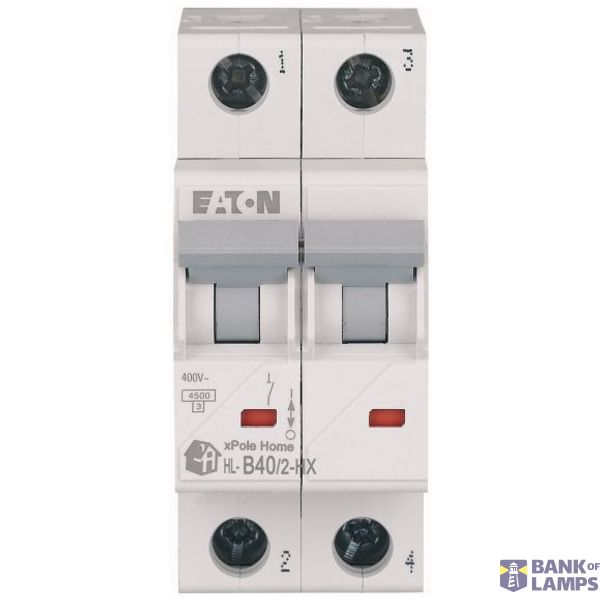

HL-B40/2-HX Eaton Moeller series xPole - HL/HL-HX MCB
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | HL-B40/2-HX Eaton Moeller series xPole - HL/HL-HX MCB |
| Brand | EATON |
| ETIM | EC000042 |
| Rated current | 40 A |
| Rated voltage | 230 V |
| Release characteristic | B |
| Width in number of modular spacings | 2 |
| Number of poles (total) | 2 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 4.5 kA |
Packing details
| Packing level 1 | 9010238064492 |
| Packing level 2 | 9010238068667 |
| Packing level 3 | 9010238071643 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 44 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 440 V |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 3 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 2 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Ambient temperature during operating | -25-75 °C |
| Flush-mounted installation | Yes |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 4.5 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 0 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 0 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
Description
Miniature circuit breaker (MCB), xPole home, tripping characteristics: B, C, rated switching capacity according to IEC/EN 60898-1: 4.5 kA, Switchgear for residential and commercial applications
