HIGH BAY DALI 90 W 4000 K 115 DEG IP65 BK
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | HIGH BAY DALI 90 W 4000 K 115 DEG IP65 BK |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4210 00 |
| ETIM | EC001716 |

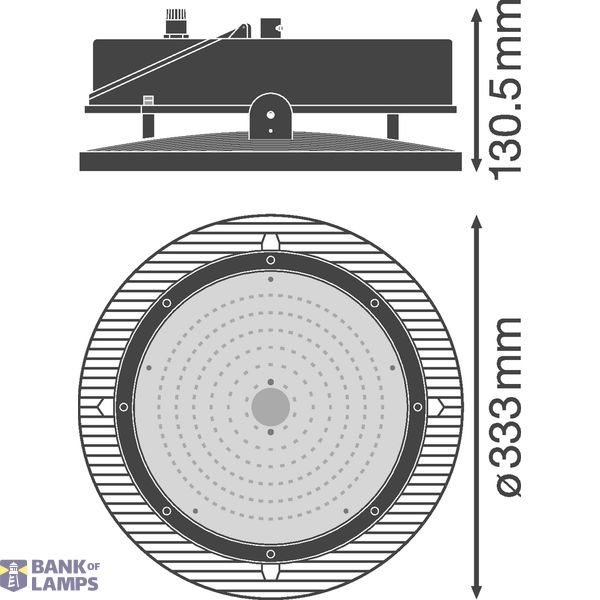

| Width | 330 mm |
| Colour rendering index CRI | 80-89 |
| Length | 330 mm |
| Height/depth | 130 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 90 W |
| Rated luminous flux according to IEC 62722-2-1 | 13000 lm |
Packing details
| Packing level 1 | 4058075130685 |
Other Technical data
| Protection class | I |
| Outer diameter | 330 mm |
| Reflector | None |
| Colour housing | Black |
| Voltage type | AC |
| Type of control gear | Electronic ballast |
| Ball-proof | No |
| Number of poles | 5 |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light sharing | Symmetric |
| With protective cover | Yes |
| With light source | Yes |
| With control gear | Yes |
| Colour of light | White |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 80000 h |
| Rated life time L90/B10 at 25 °C | 25000 h |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| LED nominal current at constant current | 400 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | None |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
Description

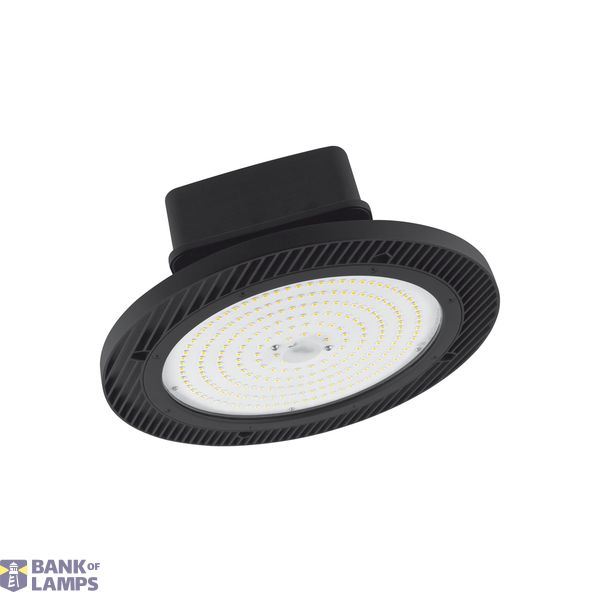

LED high-bay luminaires with DALI interface. Product features: Pre-configured DALI driver included. Luminous efficacy: up to 140 lm/W. Type of protection: IP65. Product benefits: High compatibility thanks to DALI-2 certification. DALI 2.0 interface for dimming and sensor operations. Low flicker light thanks to special electronic control gear. High luminous efficacy. Easy electrical connection due to push button connector. Energy savings of up to 90 % compared to conventional high bay luminaires. 5 years guarantee. Areas of application: Replacement for high bay luminaires with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies). Equipment / Accessories: Mounting hook included. Mounting brackets and reflectors as seperate accessory available.
