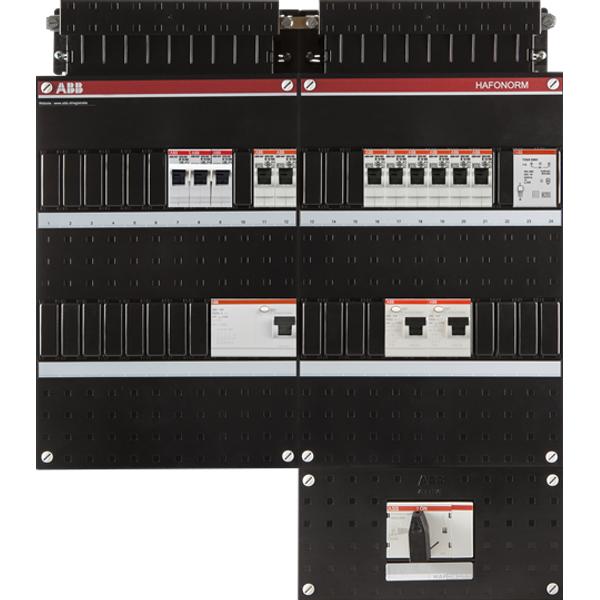

HH-H44-44.22-0.72K.33.33T Consumer Unit
In stock: No
Vendor stock: No
Minimal order quantity: 1
Not Available
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | HH-H44-44.22-0.72K.33.33T Consumer Unit |
| Brand | ABB |
| Harmonized System Code | 8537 1098 00 |
| Mounting method | Surface mounted (plaster) |
| Width | 440 mm |
| Height | 500 mm |
| Depth | 90 mm |
| Lockable | No |
| With socket outlet | No |
| Number of phases | 3 |
| Protection | Miniature- / earth leakage circuit breaker |
| Extension possible | Yes |
| With transparent cover | No |
| Over voltage protection | No |
| Housing material | Plastic |
| Width in number of modular spacings | 48 |
| Built-in depth | 0-45 mm |
| Degree of protection (IP) | IP20 |
| Number of earth leakage circuit breakers | 0 |
| Number of earth leakage switches 300 mA | 0 |
| Number of earth leakage switches 30 mA | 3 |
| Number of direct groups | 0 |
| Number of groups behind earth leakage switch | 9 |
| Number of light groups | 8 |
| Number of poles main switch | 4 |
| With bell transformer | Yes |
| Cooker group | 3-phase |
| Cooker group suitable as power current group | No |
| Total number of groups | 9 |
| Main switch rated current | 40 A |
| Suitable for data | No |
| Protection main switch | No |
| Protection incoming RCD | No |
| Protection high integrity | No |
| Protection split load | Yes |
| Protection dual RCD | Yes |
| Number of outgoing ways | 0 |
| Number of arc fault detection devices AFDD | 0 |
| With meter | No |
Packing details
| Packing level 1 | 8712507145109 |
Description
Small distribution board equipped Hafonorm MainSw.40A,3xRCD30mA,8ways+KT,3Ph+N Consumer Unit
