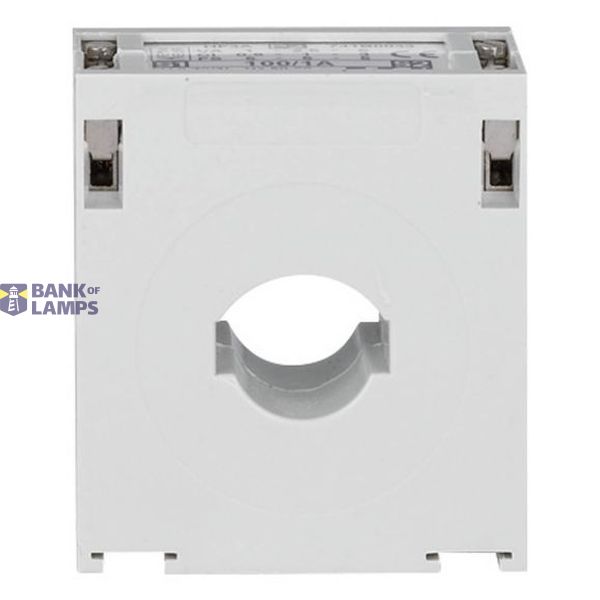

HF3A-250/5A Eaton Distribution parts image 1
EATON

HF3A-250/5A Eaton Distribution parts

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name HF3A-250/5A Eaton Distribution parts
Brand EATON
Country of origin* PL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8504 3129 00
ETIM EC002048
Model Through-feed current converter
Primary rated current 250 A
Secondary rated apparent power 5 VA
Secondary rated current 5 A
Overcurrent limiting factor FS 5
Accuracy class 0.5

Packing details

Packing level 1 5703498700210

Other Technical data

Opening diameter 17 mm
Number of primary inputs 1
With copper rail No
Snap mounting Yes
With shock protection No
Calibrated No
Secondary connection Screw connection

Description

Current transformer HF3A, Class 0.5, single phase, 250A/5A
