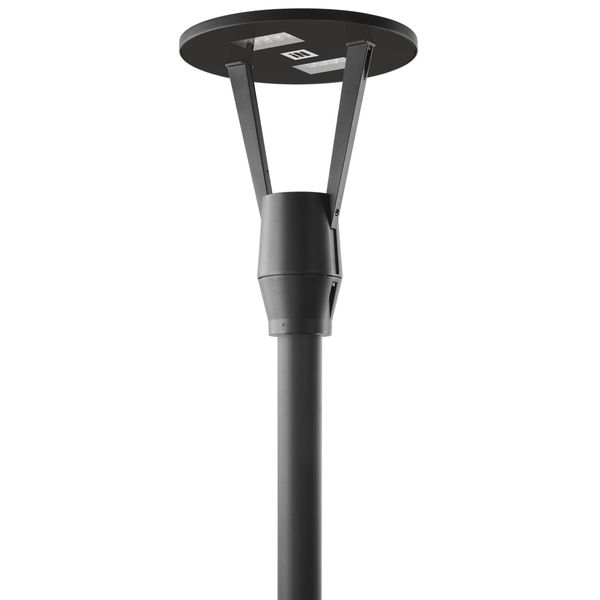

HEDO+FT 20 SR/075 730 ANTHRACITE
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
403,54 €
EAN: 8021944139238
MPN: 3104741
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HEDO+FT 20 SR/075 730 ANTHRACITE |
| Brand | Performance in Lighting |
| Categories |
Street lighting
|
| Country of origin | IT |
| Harmonized System Code | 9405 4239 00 |
| Colour rendering index CRI | 80-89 |

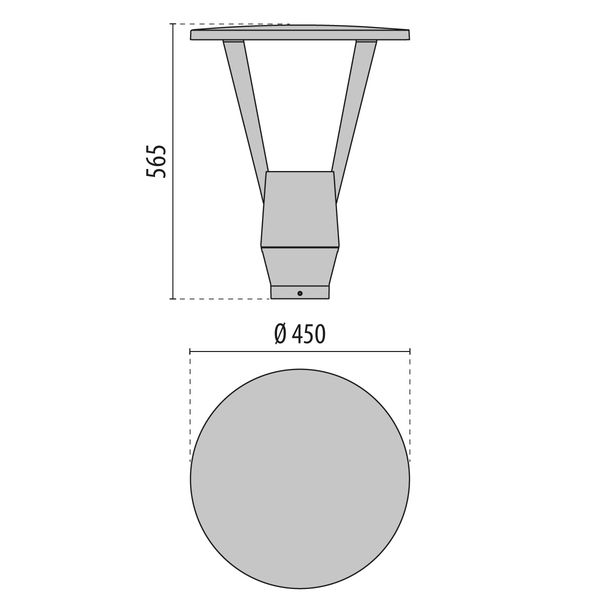

| Height/depth | 565 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000 K |
| Max. system power | 19 W |
| Luminaire efficacy | 98 lm/W |
Packing details
| Packing level 1 | 8021944139238, 8021944139238 |
Other Technical data
| Mounting method | Post top |
| Protection class | II |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | Anthracite |
| Surface protection | Powder coating |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Diameter | 450 mm |
| Number of poles | 2 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Suitable for spigot size | 60 mm |
| Colour of light | White |
| Remote control | Other |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Rated ambient temperature according to IEC62722-2-1 | -20 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Zigbee | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 96.2 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 91.8 % |
| Exchangeable control gear | Yes |
| Type of connection for sensor/communication module | Other |
Downloads
Description
Armatuur voor buiten, voor masttop installatie, bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak na chemische conversiebehandeling van het oppervlak. Verbinding aan mast van spuitgiet gelakt aluminium, geschikt voor mast Ø 60 mm of 76 mm. Afscherming van vlak, gehard, extrahelder glas, aan de binnenkant bedrukt. Pakking van slijtvast siliconen, met zeer hoge elastische terugveer-capaciteit. Elektrische verbinding met een externe IP66 snelconnector waardoor de verbinding aan het net tot stand kan worden gebracht zonder het armatuur te openen, gemaakt van PA66 met contacten van verzilverd messing, voor Ø 9 - Ø 12 mm kabels. Conform de norm UNI 10819 en de plaatselijke wetgeving met betrekking tot lichtvervuiling. Externe schroeven van roestvrij staal. Compleet met extra voorziening voor bescherming tegen piekspanningen van het netwerk tot aan 10 kV (DM). Raadpleeg de fabriek voor andere kleurtemperaturen en kleurweergave-index.
