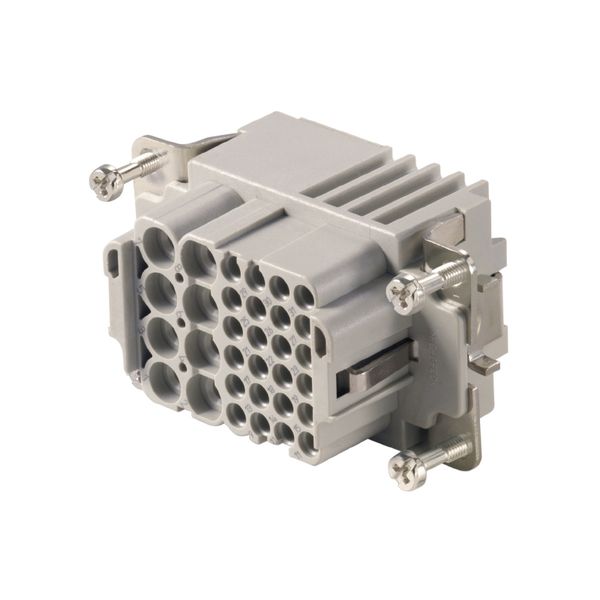

HDC insert, Female, 400 V, 16 A, Number of poles: 32, Crimp connection, Size: 4 image 1
Weidmüller

HDC insert, Female, 400 V, 16 A, Number of poles: 32, Crimp connection, Size: 4

Order only
Price (excl. VAT):
10,01 €
This price is valid until 31.01.26
EAN: 4032248739431
MPN: 1023270000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name HDC insert, Female, 400 V, 16 A, Number of poles: 32, Crimp connection, Size: 4
Brand Weidmüller
Categories Rectangular Connectors
Country of origin* CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 6990 00
Rated voltage 400 V
Type of electric connection Crimp connection

Packing details

Packing level 1 4032248739431

Other Technical data

Width 34 mm
Height 37.8 mm
Depth 64 mm
With wire protection No
Number of poles 32
Contact type Bus
Operating temperature -40-125 °C
Inflammability class of insulation material according to with UL94 V0
Rated surge voltage 4 kV
Material of contact surface Silver
Pollution degree 3
Contact insert without contacts Yes
Connectable conductor cross section solid-core 0.5-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-6 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-6 mm²
Connectable conductor cross section multi-wired 0.5-4 mm²
With protective conductor Yes
Material contact Other copper alloys
Material connector insert Thermoplastic
Rated current In 16 A
Material of contact insert Thermoplastic
Number of power contacts 8
Number of control contacts 24

Description

Insert for industrial plug-in connectors, consisting of contact element and insulating body.
