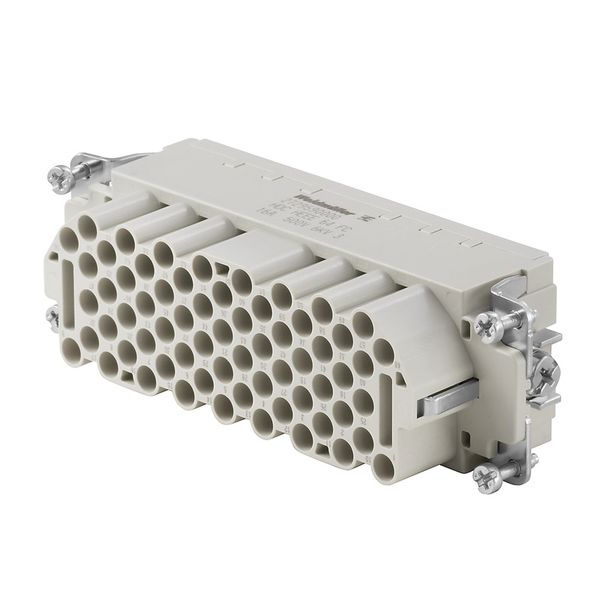

HDC insert, Female, 500 V, 16 A, Number of poles: 64, Crimp connection, Size: 8 image 1
Weidmüller

HDC insert, Female, 500 V, 16 A, Number of poles: 64, Crimp connection, Size: 8

Order only
Price (excl. VAT):
18,13 €
This price is valid until 31.01.26
EAN: 4064675010456
MPN: 2729590000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name HDC insert, Female, 500 V, 16 A, Number of poles: 64, Crimp connection, Size: 8
Brand Weidmüller
Categories Rectangular Connectors
Country of origin CN
Harmonized System Code 8538 9099 00
Rated voltage 500 V
Type of electric connection Crimp connection

Packing details

Packing level 1 4064675010456

Other Technical data

With wire protection No
Number of poles 64
Contact type Bus
Operating temperature -40-125 °C
Inflammability class of insulation material according to with UL94 V0
Rated surge voltage 6 kV
Pollution degree 3
Contact insert without contacts Yes
Connectable conductor cross section solid-core 0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-4 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-4 mm²
Connectable conductor cross section multi-wired 0.5-4 mm²
With protective conductor Yes
Material contact Other copper alloys
Material connector insert Thermoplastic
Rated current In 16 A
Material of contact insert Thermoplastic

Description

Insert for industrial plug-in connectors, consisting of contact element and insulating body.

Accessories

Heavy-duty connectors, Accessories, Coding System
Order only
Weidmüller
Heavy-duty connectors, Accessories, Coding System
0,261 €
This price is valid until 31.01.26
Subtotal: 26,10 € MOQ: 100
EAN: 4008190017354
MPN: 1471300000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy
0,225 €
This price is valid until 31.12.25
Subtotal: 22,50 € MOQ: 100
EAN: 4008190044480
MPN: 1201200000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 2.5, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 2.5, turned, Copper alloy
0,225 €
This price is valid until 31.12.25
Subtotal: 22,50 € MOQ: 100
EAN: 4008190047078
MPN: 1201400000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1.5, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1.5, turned, Copper alloy
0,225 €
This price is valid until 31.12.25
Subtotal: 22,50 € MOQ: 100
EAN: 4008190100346
MPN: 1201300000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 0.5, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 0.5, turned, Copper alloy
0,235 €
This price is valid until 24.12.25
Subtotal: 23,50 € MOQ: 100
EAN: 4008190142698
MPN: 1201100000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 4, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 4, turned, Copper alloy
0,24 €
This price is valid until 31.12.25
Subtotal: 24,00 € MOQ: 100
EAN: 4008190148096
MPN: 1201500000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Accessories, Coding element
Order only
Weidmüller
Heavy-duty connectors, Accessories, Coding element
0,56 €
This price is valid until 31.01.26
Subtotal: 56,00 € MOQ: 100
EAN: 4008190178543
MPN: 1471500000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 0.5, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 0.5, turned, Copper alloy
1,02 €
This price is valid until 31.12.25
Subtotal: 102,00 € MOQ: 100
EAN: 4008190400149
MPN: 1651470000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy
0,99 €
This price is valid until 31.12.25
Subtotal: 99,00 € MOQ: 100
EAN: 4008190400156
MPN: 1651480000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1.5, turned, Copper alloy
Order only
Weidmüller
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Female, Conductor cross-section, max.: 1.5, turned, Copper alloy
0,99 €
This price is valid until 31.12.25
Subtotal: 99,00 € MOQ: 100
EAN: 4008190400163
MPN: 1651490000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
