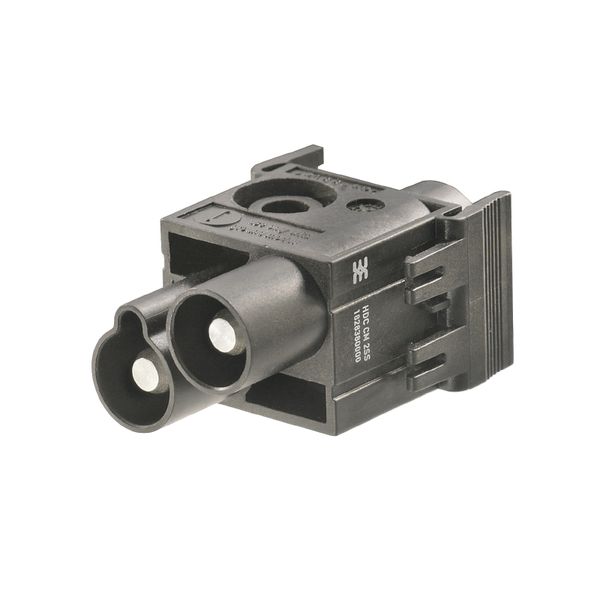

Heavy-duty connectors, HDC insert, ConCept module
Order only
Minimal order quantity: 5
Price (excl. VAT):
42,29 €
Subtotal: 211,45 €
MOQ: 5
EAN: 4032248334100
MPN: 1828380000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Heavy-duty connectors, HDC insert, ConCept module |
| Brand | Weidmüller |
| Categories |
Rectangular Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 1000 V |
| Type of electric connection | Screw connection |
| Over voltage category | III |
Packing details
| Packing level 1 | 4032248334100 |
Other Technical data
| Width | 22.8 mm |
| Height | 47.8 mm |
| Depth | 34 mm |
| With wire protection | Yes |
| Number of poles | 2 |
| Contact type | Pin |
| Inflammability class of insulation material according to with UL94 | V0 |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
| Diameter plug-in contact | 6 mm |
| Contact insert without contacts | No |
| Connectable conductor cross section solid-core | 10-25 mm² |
| Connectable conductor cross section multi-wired | 10-25 mm² |
| With protective conductor | Yes |
| Material contact | Other |
| Material connector insert | Thermoplastic |
| Rated current In | 82 A |
| Material of contact insert | Thermoplastic |
Description
Insert for industrial plug-in connectors, consisting of contact element and insulating body.
