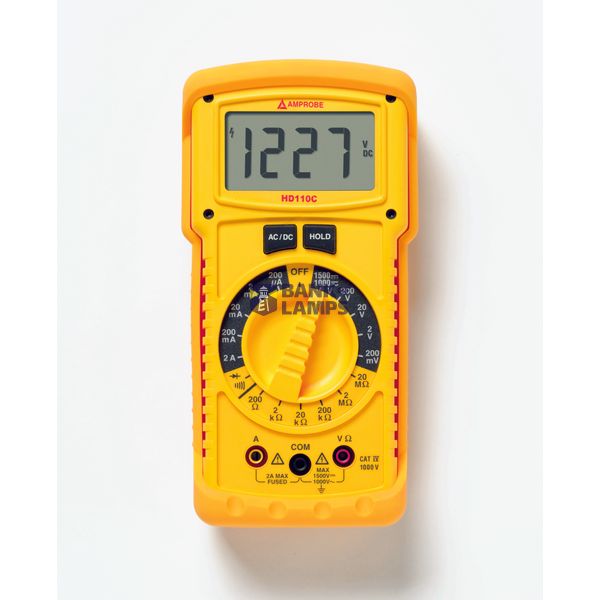

HD110C HD110C Industrial Heavy Duty Digital Multimeter, IP 67, CAT IV 1000 V
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | HD110C HD110C Industrial Heavy Duty Digital Multimeter, IP 67, CAT IV 1000 V |
| Brand | Beha-Amprobe |
| Country of origin* | TW |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9030 3200 00 |
| ETIM | EC000069 |
| Indication | Digital |
| Measuring range selection | Manual |
| Max. voltage measuring range, AC | 1000 V |
| Max. voltage measuring range, DC | 1500 V |
| Max. current measuring range, AC | 2 A |
| Max. current measuring range, DC | 2 A |
| Max. resistance measuring range | 20 MOhm |
| Measuring circuit category | CAT IV |
| Degree of protection (IP) | IP67 |
| Max. temperature measuring range | 0 °C |
| Max. capacitance measuring range | 0 µF |
| Max. frequency measuring range | 0 kHz |
Packing details
| Packing level 1 | 0095969353250 |
Other Technical data
| Measured value memory | No |
| True RMS measurement | No |
| Continuity test | Yes |
| Interface | No |
| Capacitance measurement | No |
| Frequency measurement | No |
| With decibel measurement (dB) | No |
| Data hold | Yes |
| IR interface | No |
| Explosion-tested version | No |
| Analogue bar graph display | No |
| Bluetooth interface | No |
| Resistance test/diode test | Yes |
| Inductance measurement | No |
| Lowest resolution, DC voltage | 0.1 mV |
| Lowest resolution, DC current | 0.1 µA |
| Lowest resolution, AC voltage | 0.1 mV |
| Lowest resolution, AC current | 0.1 µA |
| Lowest resolution, resistance | 0.1 Ohm |
| With conductivity measurement | No |
| Max. value storage | No |
| Multiple display | No |
| Min. value storage | No |
| Relative value measurement | No |
| Peak value memory | No |
| Duty cycle measurements | No |
| Temperature measurement | No |
| Analogue bar graph display analogue/logarithmical | No |
| Temperature measurement TC | No |
| Cable length measurement | No |
| Cable symmetry testing for two wire connections a-b-E | No |
| Power and energy measurement | No |
| Harmonics analysis/power quality | No |
| Rotational speed measuring | No |
| Automatic circuit breaker | No |
| Max. voltage measuring circuit category | 1000 V |
| With display backlight | No |
Downloads
Description
HD110C,HEAVY DUTY DMM, IP67, 1500V DC
