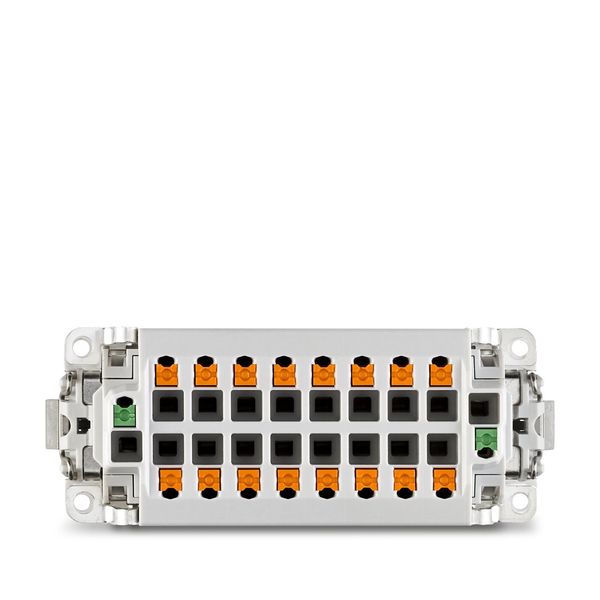

HC-B16-I-PT-CI-M - Contact insert
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
8,79 €
per pcs
EAN: 4063151667757
MPN: 1350015
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HC-B16-I-PT-CI-M - Contact insert |
| Brand | Phoenix Contact |
| Categories |
Rectangular Connectors
|
| Country of origin | CN |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 500 V |
| Type of electric connection | Spring clamp connection |
| Over voltage category | III |
Packing details
| Packing level 1 | 4063151667757, 4063151667757 |
Other Technical data
| Width | 34 mm |
| Height | 34.4 mm |
| Depth | 84 mm |
| With wire protection | No |
| Number of poles | 16 |
| Contact type | Pin |
| Ambient temperature | 125 °C |
| Operating temperature | -40-125 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Rated surge voltage | 6 kV |
| Material of contact surface | Other |
| Pollution degree | 3 |
| Diameter plug-in contact | 2.5 mm |
| Contact insert without contacts | No |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.14-2.5 mm² |
| With protective conductor | Yes |
| Material contact | Other copper alloys |
| Material connector insert | Thermoplastic |
| Rated current In | 16 A |
| Material of contact insert | Thermoplastic |
| Min. number of insertion cycles | 500 |
| Number of power contacts | 16 |
Description
Contact insert, number of positions: 16+2 PE, size: B16, number of connections per position: 1, Pin, Push-in connection, 500 V, 16 A, 0.14 mm² ... 2.5 mm², application: Power, tool-free Click-in mounting
