HC-28S1N12WA00 - Device connector front mounting

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

48,83 € per pcs

This price is valid until 24.12.25

EAN: 4046356187633

MPN: 1590439

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	HC-28S1N12WA00 - Device connector front mounting
Brand	Phoenix Contact
Categories	Circular Connectors
Country of origin	DE
Harmonized System Code	8536 6990 00
Number of poles	28
Operating temperature	-20-125 °C
Degree of protection (IP), mounted	IP67

Packing details

Packing level 1

4046356187633

Other Technical data

Ambient temperature	125 °C
Inflammability class of insulation material according to with UL94	V0
With shield connection	Yes
With PE-connection	No
Min. number of insertion cycles	50
Number of control contacts	28

Description

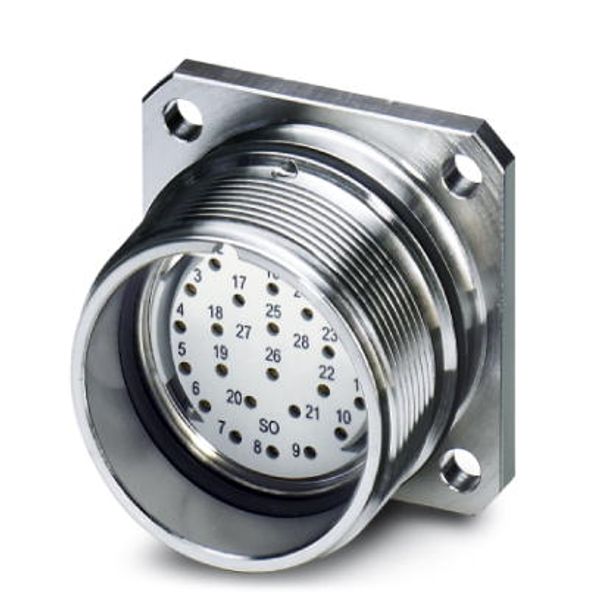

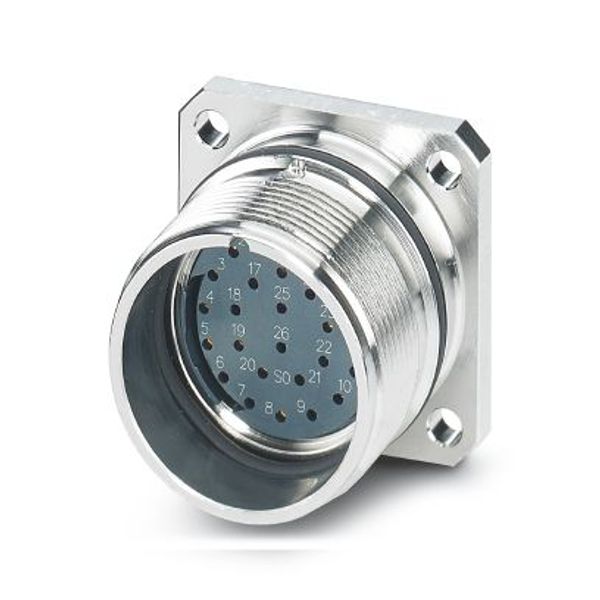

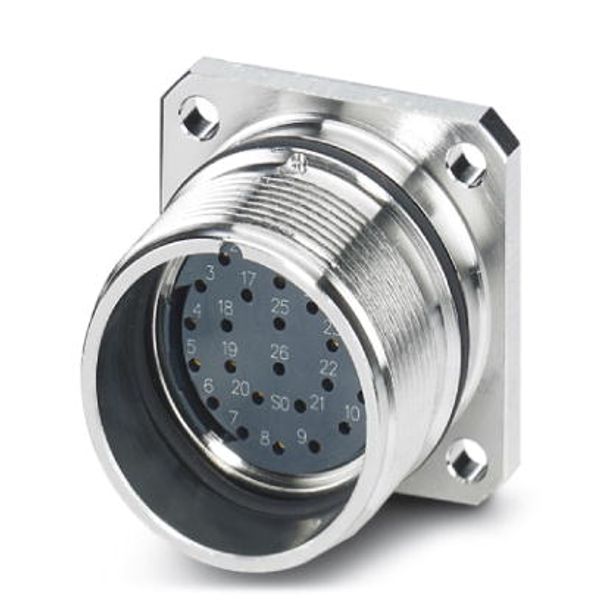

Device connector front mounting, straight, Screw locking, M27, type of contact: Socket, Radial O-ring, 4x Ø 3.2, shielded: yes, degree of protection: IP67, number of positions: 28, connection method: Solder connection, series: HC
