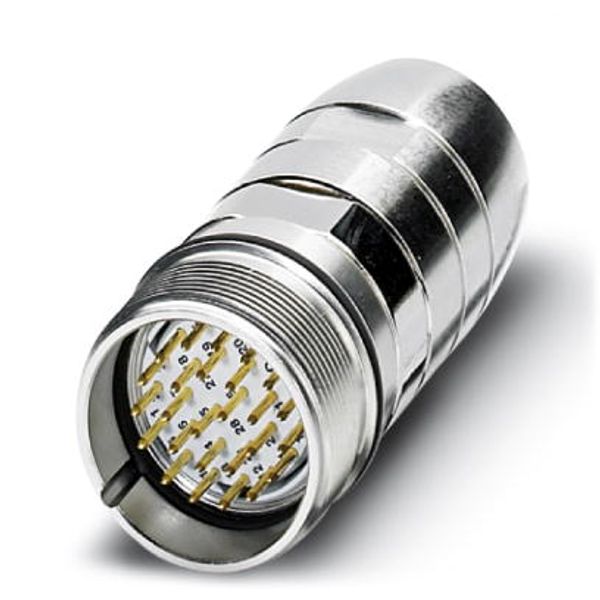

HC-28P1N1290DU - Coupler connector image 1

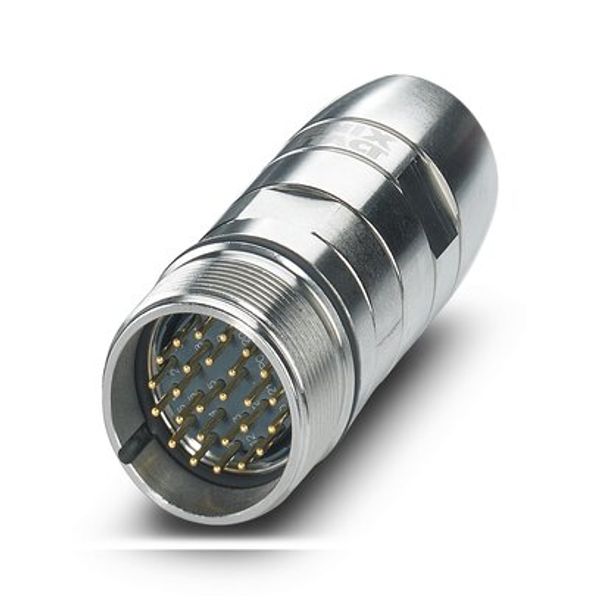

HC-28P1N1290DU - Coupler connector image 2

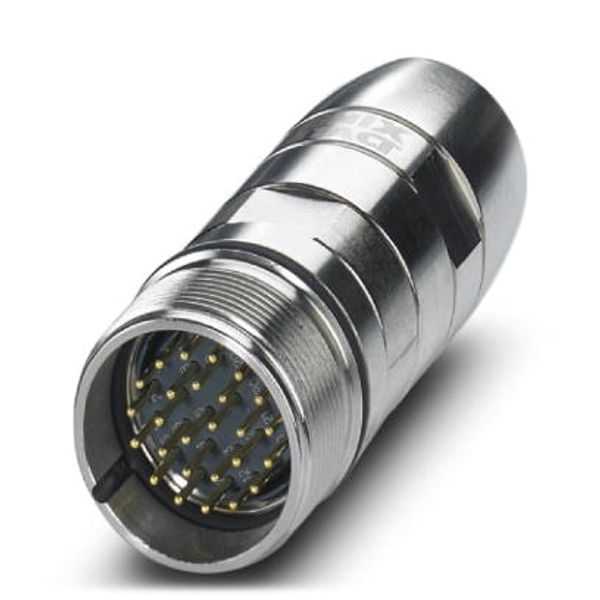

HC-28P1N1290DU - Coupler connector image 3

HC-28P1N1290DU - Coupler connector image 4

HC-28P1N1290DU - Coupler connector

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

56,93 € per pcs

This price is valid until 31.12.25

EAN: 4046356187442

MPN: 1590415

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	HC-28P1N1290DU - Coupler connector
Brand	Phoenix Contact
Categories	Circular Connectors
Country of origin	DE
Harmonized System Code	8536 6990 00
Rated voltage	48 V
Ambient temperature	125 °C
Degree of protection (IP), mounted	IP67
Number of power contacts	0
Number of control contacts	28
Number of data contacts	0

Packing details

Packing level 1

4046356187442

Other Technical data

Locking mechanism	Other
Screened	Yes
With status indication	No
Type of electric connection	Soldering connection
With protective conductor	No
Min. number of insertion cycles	50

Description

Coupler connector, straight, Screw locking, M27, number of positions: 28, type of contact: Pin, shielded: yes, degree of protection: IP67, cable diameter range: 2 mm ... 14.5 mm, number of positions: 28, connection method: Solder connection, series: HC
