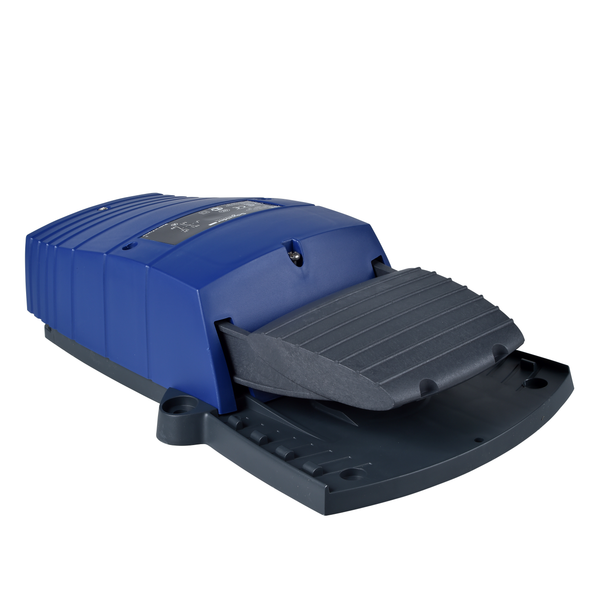

Harmony XPE, Single foot switch, plastic, blue, without cover, 2 steps, 2 contacts 1 NC+NO, IP66
Order only
Price (excl. VAT):
119,04 €
EAN: 3389110166323
MPN: XPEB111
Package: 1
Box: 12
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Harmony XPE, Single foot switch, plastic, blue, without cover, 2 steps, 2 contacts 1 NC+NO, IP66 |
| Brand | Schneider Electric |
| Categories |
Push Buttons
|
| Suitable for safety functions | Yes |
| Type of command | On or off |
| Degree of protection (IP) | IP66 |
| Switching function latching | No |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
Packing details
| Packing level 1 | 3389110166323 |
| Packing level 2 | 3389110166321 |
Other Technical data
| Colour | Blue |
| Width | 165 mm |
| Height | 74 mm |
| Depth | 282 mm |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Material | Plastic |
| With protection hood | No |
| With interlocking | No |
| With protective insulation | No |
| Degree of protection (NEMA) | Other |
Downloads
ECOP (Environmental Code of Practice)
Declaration DOC CE (Declaration of conformity CE)
Technical manual
Description
This Harmony XPEB111 is a single foot switch. Its degree of protection is IP66. It has no cover, plastic material, blue color, 2 NC + 2 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
