Harmony XPE, Single foot switch, metal, blue, with cover, trigger mechanism, 2 steps, 2 contacts 1 NC+NO, IP66

Order only

Price (excl. VAT):

218,84 €

This price is valid until 31.12.25

EAN: 3389110650181

MPN: XPEM711

Package: 1

Pallet: 30

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Harmony XPE, Single foot switch, metal, blue, with cover, trigger mechanism, 2 steps, 2 contacts 1 NC+NO, IP66
Brand	Schneider Electric
Categories	Push Buttons
Country of origin*	MA
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5080 00
Number of switch positions	0
Suitable for safety functions	Yes
Type of command	On or off
Degree of protection (IP)	IP66
Switching function latching	No
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Number of contacts as change-over contact	0

Packing details

Packing level 1	3389110650181
Packing level 2	3389110650181

Other Technical data

Colour	Blue
Width	160 mm
Height	0 mm
Depth	186 mm
Rated operation current Ie at AC-15, 230 V	3 A
Material	Metal
With protection hood	Yes
With interlocking	Yes
With protective insulation	No

Downloads

ECOP (Environmental Code of Practice) Declaration DOC CE (Declaration of conformity CE) Technical manual

Description

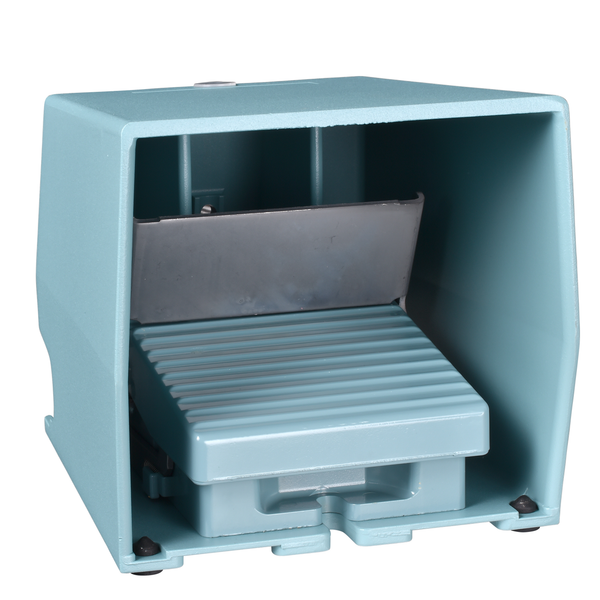

This Harmony XPEM711 is a single foot switch. Its degree of protection is IP66. It has a cover, metallic material, blue color, 2 NC + 2 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
