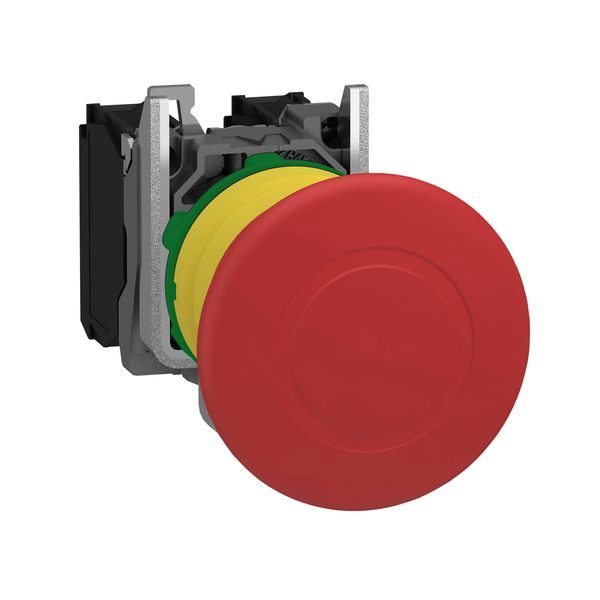

Harmony XB5, Emergency stop switching off, plastic, red mushroom Ø40, Ø22 trigger latching push-pull, 1 NO + 1 NC

In stock: No Vendor stock: Yes Minimal order quantity: 1

Price (excl. VAT):

24,23 €

This price is valid until 31.12.25

EAN: 3389110903751

MPN: XB5AT845

Package: 1

Box: 42

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Harmony XB5, Emergency stop switching off, plastic, red mushroom Ø40, Ø22 trigger latching push-pull, 1 NO + 1 NC
Brand	Schneider Electric
Categories	Push Buttons
Country of origin	CZ
Mounting method	Built-in
Unlocking method	Pull-release
Degree of protection (IP)	IP66

Packing details

Packing level 1	3389110903751
Packing level 2	3389110903759

Other Technical data

Hole diameter	22.5 mm
Diameter cap	40 mm
With lighting	No
Supply voltage lamp	0 V
Connection type auxiliary circuit	Screw connection
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Declaration DOC CE (Declaration of conformity CE) Instructions for use Technical manual

Description

This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched push-pull mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
