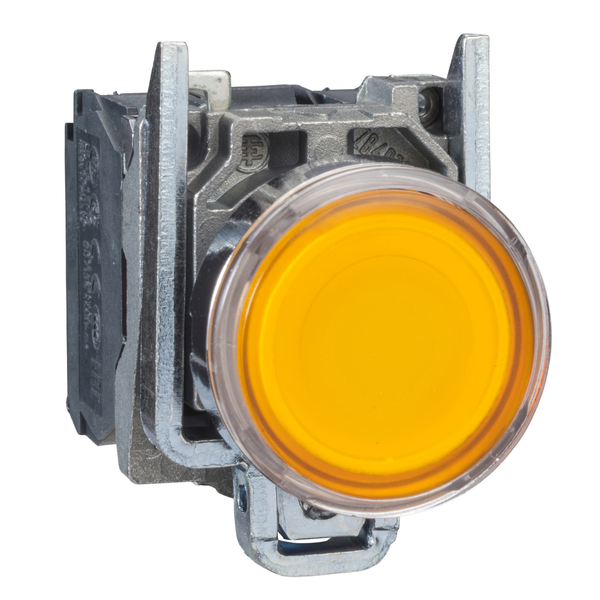

Harmony XB4, Illuminated push button, metal, flush, orange, Ø22, spring return, 230...240 V AC, 1 NO + 1 NC
Order only
Minimal order quantity: 5
Price (excl. VAT):
33,93 €
Subtotal: 169,65 €
MOQ: 5
EAN: 3389110892154
MPN: XB4BW35M5
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Harmony XB4, Illuminated push button, metal, flush, orange, Ø22, spring return, 230...240 V AC, 1 NO + 1 NC |
| Brand | Schneider Electric |
| Categories |
Push Buttons
|
| Country of origin | FR |
| Colour button | Orange |
| Number of command positions | 1 |
| Type of button | Flat |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 3389110892154 |
| Packing level 2 | 3389110892152 |
Other Technical data
| Hole diameter | 22.5 mm |
| Suitable for illumination | Yes |
| Spring-return | Yes |
| Colour front ring | Chrome |
| Type of electric connection | Screw connection |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Material front ring | Metal |
| With front ring | Yes |
| Construction type lens | Round |
| Supply voltage lamp | 240 V |
| Switching function latching | No |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | 4X |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Declaration DOC CE (Declaration of conformity CE)
Technical manual
Description
This Harmony XB4 illuminated modular orange push button operates with a spring return mechanism, is supplied with 220V to 240V AC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
