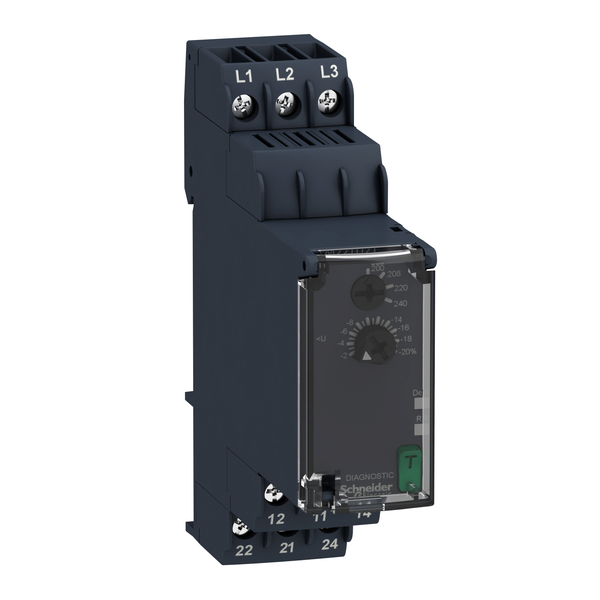

Harmony, Modular 3-phase undervoltage control relay, 8 A, 2 CO, 200…240 V AC
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
80,83 €
EAN: 3606480792168
MPN: RM22TU21
Package: 1
Box: 40
Pallet: 640
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Harmony, Modular 3-phase undervoltage control relay, 8 A, 2 CO, 200…240 V AC |
| Brand | Schneider Electric |
| Categories |
Monitoring Relays
|
| Country of origin | ID |
| Voltage measuring range | 160-288 V |
| Phase sequence monitoring | Yes |
| Phase imbalance monitoring | No |
| Type of electric connection | Screw connection |
| Number of contacts as normally closed contact | 0 |
Packing details
| Packing level 1 | 3606480792168 |
| Packing level 2 | 3606480792166 |
| Packing level 3 | 3606480792168 |
Other Technical data
| Width | 22.5 mm |
| Height | 90 mm |
| Depth | 73 mm |
| With detachable clamps | No |
| Phase failure detection | Yes |
| Function under voltage detection | Yes |
| Function over voltage detection | No |
| Rated control supply voltage at AC 50 Hz | 200-240 V |
| Rated control supply voltage at AC 60 Hz | 200-240 V |
| Max. permitted delay-on energization time | 0 s |
| Min. adjustable delay-on energization time | 0 s |
| Max. permitted off-delay time | 0 s |
| Min. adjustable off-delay time | 0 s |
| Voltage type for actuating | AC |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Description
"This Harmony RM22-TU relay allows monitoring of phase and undervoltage/overtage in 3-phase networks." "This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
