HALYXX, 3,7 W, white, on/off Ceiling luminaires, L 235 B 40 H 220, CBS
Order only
Price (excl. VAT):
214,93 €
EAN: 4051859531609
MPN: 671736.002.1
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HALYXX, 3,7 W, white, on/off Ceiling luminaires, L 235 B 40 H 220, CBS |
| Brand | RZB |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 6180 00 |
| Width | 40 mm |
| Length | 235 mm |
| Height/depth | 220 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 4000 K |
| Max. system power | 3.7 W |
Packing details
| Packing level 1 | 4051859531609, 4051859531609 |
Other Technical data
| Mounting method | Ceiling surface mounting |
| Protection class | I |
| Function | Escape route signage |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Suitable for labelling type | Other |
| Type of indicator | Single/double-sided |
| Number of poles | 3 |
| Housing material | Aluminium |
| Number of lighting heads | 1 |
| Material cover | Plastic, transparent |
| Battery quality | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Other |
| Recognition distance | 19 m |
| Nominal current | 15-17 |
| Constant light output (CLO) | No |
| With pictogram | Yes |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | 25 °C |
| Light distributor | None |
| Max. number of luminaires per miniature circuit breaker C16 | 45 |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Exchangeable control gear | Yes |
| Power factor | 0.83 |
Downloads
Description

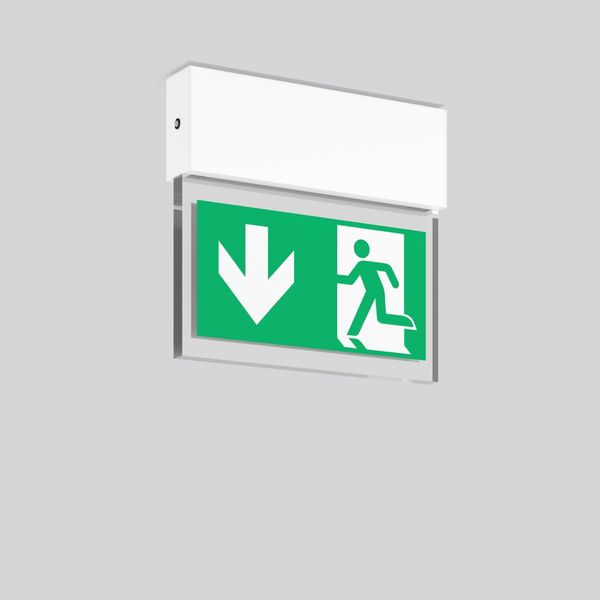

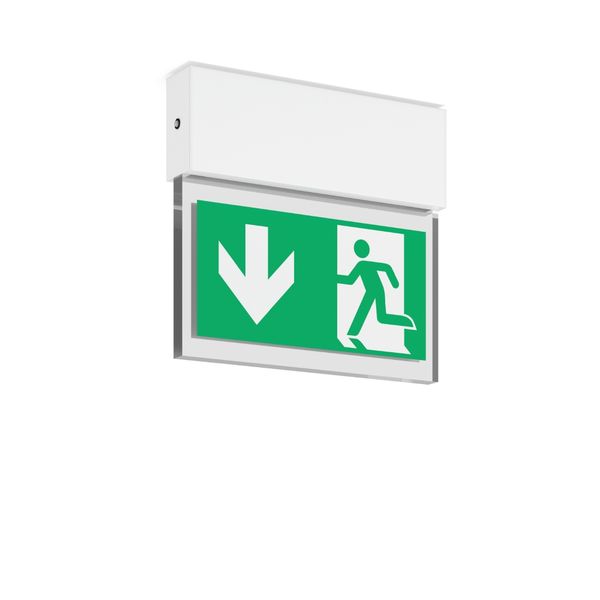

Luminaire for escape route identification. Housing: extruded aluminium profile, anodised or powder-coated. Display panel: highly transparent panel, plastic, with legend on one side/both sides. The converter is compatible with DC, making it ideal for central battery systems. Please indicate legend number when placing your order!
