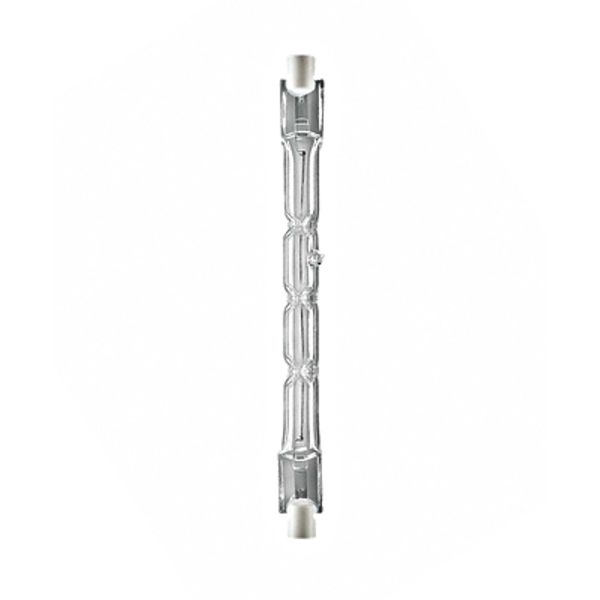

HALOPIN® 64696 120W 230V R7S FS1 OSRAM
Technical Information
| Item condition | New |
| Manufacture name | HALOPIN® 64696 120W 230V R7S FS1 OSRAM |
| Brand | OSRAM |
| Categories |
R7s Light Bulbs
R7s Halogen Lamps |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8539 2192 00 |
| Energy Class | G |
| EPREL - European Product Registry for Energy Labelling | 714434 |
| Model | Clear |
| Socket | R7s |
| Luminous flux | 2220 lm |
| Total length | 114.2 mm |
| Diameter | 12 mm |
| Lamp shape | Tube, double-ended |
| Lamp voltage | 230 V |
| Colour temperature | 2900 K |
| Lamp power | 120 W |
Packing details
| Packing level 1 | 4008321977670 |
| Packing level 2 | 4008321977687 |
| Packing level 3 | 4008321977670 |
Other Technical data
| UV-protection | No |
| Infrared coating/-technique | No |
| Twisted glass | No |
| Average nominal lifespan | 2000 h |
| Weighted energy consumption in 1000 hours | 120 kWh |
| Lamp designation | T4 |
| Energy efficiency class according to EU regulation 2019/2015 | G |
Downloads
Description
This component is a light-emitting diode (LED) module designed for integration into lighting systems. It provides controlled illumination by converting electrical energy into visible light while maintaining high energy efficiency across various operating conditions. **Electrical Specifications:** Operates on an input voltage range suitable for low-voltage DC circuits — typically optimized for 24V systems. Current draw aligns with standard LED specifications, ensuring compatibility in power-limited environments. Internal drivers stabilize performance under fluctuating loads. **Thermal Operation:** Built-in heat dissipation mechanisms extend operational life, though external housing design must account for ambient temperature management to avoid thermal overloading. Passive cooling preferred; active solutions may be required in compact installations. - Rated lifetime depends on consistent current and voltage inputs within prescribed tolerances. - Not waterproof – requires additional sealing if used outdoors or in damp environments. - Reverse polarity may cause permanent damage – confirm wiring before application. - Cannot function without regulated DC power supply – incompatible with non-regulated sources or AC directly.
