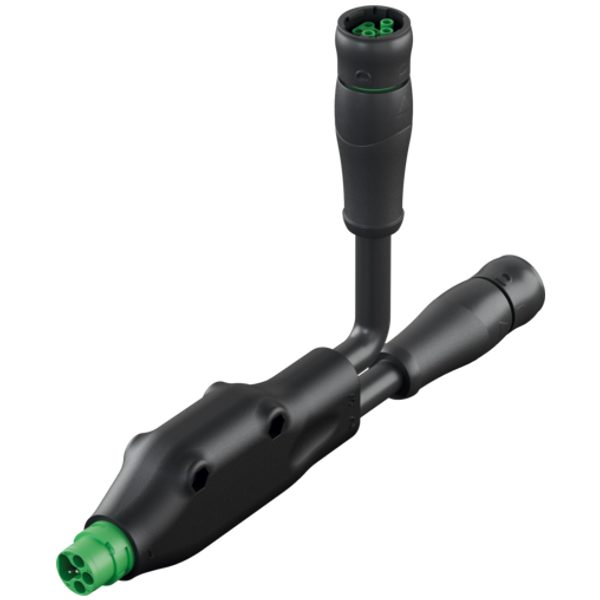

h-coupler MQ15 male-fem. 270°/fem. 0° 600VAC PUR 6x2.5 bk 1.5m/1m
Order only
Price (excl. VAT):
128,86 €
EAN: 4065909081952
MPN: 7000-P8KDE-P630200
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | h-coupler MQ15 male-fem. 270°/fem. 0° 600VAC PUR 6x2.5 bk 1.5m/1m |
| Brand | Murrelektronik |
| Categories |
Plugs
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| Nominal current | 16 A |
| Nominal cross section conductor | 2.5 mm² |
| Connection 1 | Other |
| Connection 2 | Other |
| Frequency | 0-300 Hz |
| Length | 2 m |
| Colour outer sheath | Black |
| Material outer sheath | Polyurethane (PUR) |
| Number of cores | 6 |
| Spiralized cable | No |
| Temperature resistance | -50-80 °C |
| Outer diameter approx. | 8.8 mm |
| Nominal voltage | 0-600 V |
| Degree of protection (IP) | IP67 |
| With cord switch | No |
| With protective conductor | Yes |
| Connector system system-oriented | Yes |
| Oil resistant according to IEC 60811-404 | Yes |
| Connection type according to IEC 60320, connection 1 | Other |
| Connection type according to IEC 60320, connection 2 | Other |
| Cable entry connection 1 | Straight |
| Cable entry connection 2 | Straight |
Packing details
| Packing level 1 | 4065909081952, 4065909081952 |
Downloads
Description
h-coupler MQ15 male - fem. 0° / fem. 270° 600V AC PUR 6x2.5 bk 2m / PUR 6x2.5 bk 1m
