GWDR PO (flat gasket - polyethylene), Sealing ring, M 32, Polyethylene image 1
GWDR PO (flat gasket - polyethylene), Sealing ring, M 32, Polyethylene image 2
GWDR PO (flat gasket - polyethylene), Sealing ring, M 32, Polyethylene thumbnail 1
GWDR PO (flat gasket - polyethylene), Sealing ring, M 32, Polyethylene thumbnail 2
Weidmüller

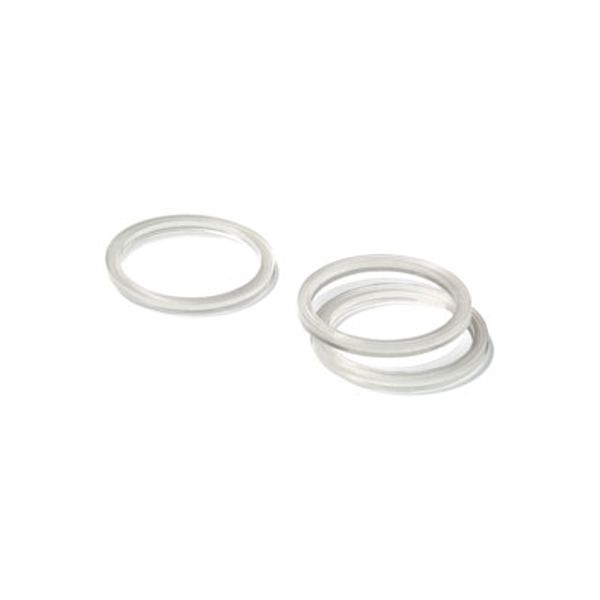

GWDR PO (flat gasket - polyethylene), Sealing ring, M 32, Polyethylene

Order only Minimal order quantity: 50
Price (excl. VAT):
0,275 €
This price is valid until 24.12.26
Subtotal: 13,75 € MOQ: 50
EAN: 4032248158225
MPN: 1777960000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name GWDR PO (flat gasket - polyethylene), Sealing ring, M 32, Polyethylene
Brand Weidmüller
Categories Washers
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 3926 9097 00
Outer diameter 36 mm
Inner diameter 32 mm
Thickness 2 mm
Material quality Other
Material Plastic
Suitable for thread size NPT Other
Ring model Massive

Packing details

Packing level 1 4032248158225

Other Technical data

With washer No
Number of feedthroughs 1

Description

Flat gasket for increasing the degree of protection in the case of cable glands and sealing plugs. Recommended for use in Ex applications. Also suitable as a replacement for O-rings.

Suitable for

VG MS (standard brass cable gland), Cable glands, straight, M 32, 9 mm, OD min. 13 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
Order only
Weidmüller

VG MS (standard brass cable gland), Cable glands, straight, M 32, 9 mm, OD min. 13 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated

12,02 €
This price is valid until 24.12.26
Subtotal: 120,20 € MOQ: 10
EAN: 4032248129898
MPN: 1772240000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VG K (standard plastic cable gland), Cable glands, straight, M 32, 15 mm, OD min. 18 - OD max. 25 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
Order only
Weidmüller

VG K (standard plastic cable gland), Cable glands, straight, M 32, 15 mm, OD min. 18 - OD max. 25 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

1,57 €
This price is valid until 24.12.26
Subtotal: 31,40 € MOQ: 20
EAN: 4032248129980
MPN: 1772320000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VPK (blanking plug in plastic), Blanking plug, in closed state, M 32, 11 mm, IP65, Polyamid 6 (PA6 - GF30)
Order only
Weidmüller

VPK (blanking plug in plastic), Blanking plug, in closed state, M 32, 11 mm, IP65, Polyamid 6 (PA6 - GF30)

0,439 €
This price is valid until 24.12.26
Subtotal: 21,95 € MOQ: 50
EAN: 4032248156382
MPN: 1776940000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VG MS ZE (standard brass cable gland strain relief), Cable glands, straight, M 32, 8 mm, OD min. 17 - OD max. 27 mm, IP65, Brass, nickel-plated
Order only
Weidmüller

VG MS ZE (standard brass cable gland strain relief), Cable glands, straight, M 32, 8 mm, OD min. 17 - OD max. 27 mm, IP65, Brass, nickel-plated

24,00 €
This price is valid until 24.12.26
Subtotal: 600,00 € MOQ: 25
EAN: 4032248161508
MPN: 1778490000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VG EMV GEN 1 (EMC cable gland with clamping cage), Cable glands, straight, M 32, 8, OD min. 15 - OD max. 21 mm, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
Order only
Weidmüller

VG EMV GEN 1 (EMC cable gland with clamping cage), Cable glands, straight, M 32, 8, OD min. 15 - OD max. 21 mm, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated

14,59 €
This price is valid until 24.12.26
Subtotal: 145,90 € MOQ: 10
EAN: 4032248536450
MPN: 1909530000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VG K (standard plastic cable gland), Cable glands, straight, M 32, 15 mm, OD min. 18 - OD max. 25 mm, Polyamide 6
Order only
Weidmüller

VG K (standard plastic cable gland), Cable glands, straight, M 32, 15 mm, OD min. 18 - OD max. 25 mm, Polyamide 6

1,28 €
This price is valid until 24.12.26
Subtotal: 25,60 € MOQ: 20
EAN: 4032248536641
MPN: 1909720000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VG K (standard plastic cable gland), Cable glands, straight, M 32, 10 mm, OD min. 15 - OD max. 21 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
Order only
Weidmüller

VG K (standard plastic cable gland), Cable glands, straight, M 32, 10 mm, OD min. 15 - OD max. 21 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

1,68 €
This price is valid until 24.12.26
Subtotal: 33,60 € MOQ: 20
EAN: 4032248536801
MPN: 1909880000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Weidmüller
Order only
Weidmüller

VG MS (standard brass cable gland), Cable glands, straight, M 32, 8 mm, OD min. 15 - OD max. 21 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Brass, nickel-plated

7,74 €
This price is valid until 24.12.26
Subtotal: 77,40 € MOQ: 10
EAN: 4032248536856
MPN: 1909930000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VG S (standard stainless steel cable gland), Cable glands, straight, M 32, 9 mm, OD min. 13 - OD max. 18 mm, Stainless steel 1.4305 (303)
Order only
Weidmüller

VG S (standard stainless steel cable gland), Cable glands, straight, M 32, 9 mm, OD min. 13 - OD max. 18 mm, Stainless steel 1.4305 (303)

34,07 €
This price is valid until 24.12.26
Subtotal: 681,40 € MOQ: 20
EAN: 4032248714704
MPN: 1009880000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
VPMS Ex (ex blanking plug, brass), Blanking plug, straight, M 32, 12 mm, Brass, nickel-plated
Order only
Weidmüller

VPMS Ex (ex blanking plug, brass), Blanking plug, straight, M 32, 12 mm, Brass, nickel-plated

27,39 €
This price is valid until 24.12.26
Subtotal: 273,90 € MOQ: 10
EAN: 4032248992409
MPN: 1210920000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
