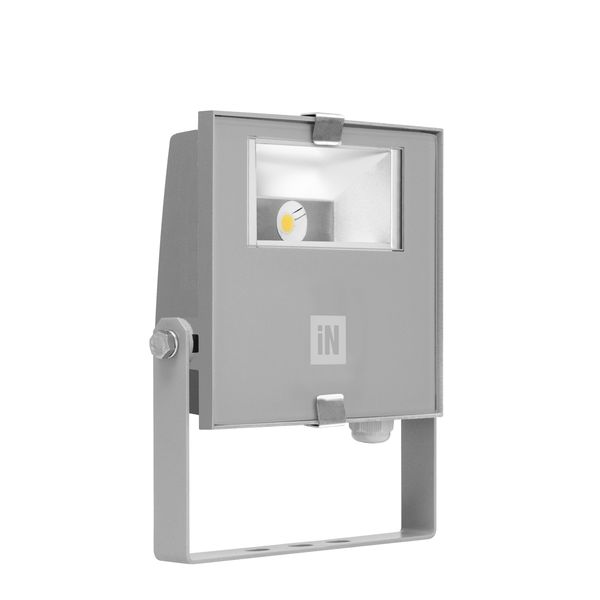

GUELL ZERO/A/W15W 4000K 94 GREY
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
65,69 €
EAN: 8021944077202
MPN: 06115794
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | GUELL ZERO/A/W15W 4000K 94 GREY |
| Brand | Performance in Lighting |
| Categories |
Wall mounting lamps
|
| Country of origin | IT |
| Harmonized System Code | 9405 4210 00 |

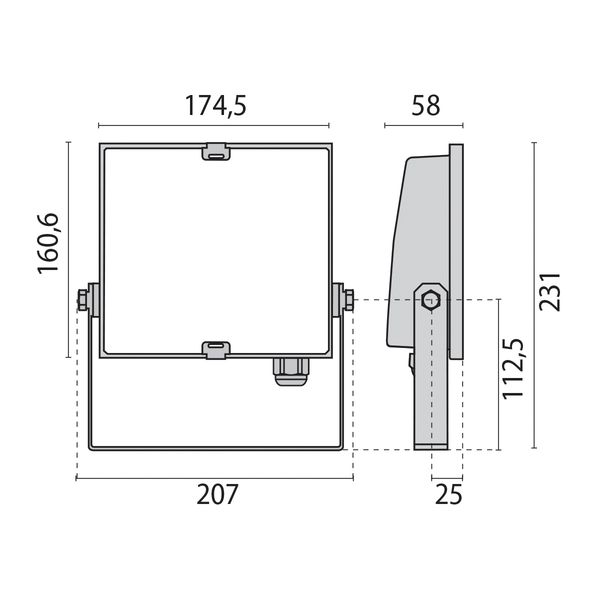

| Width | 207 mm |
| Colour rendering index CRI | 80-89 |
| Length | 231 mm |
| Height/depth | 58 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220 V |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 15 W |
Packing details
| Packing level 1 | 8021944077202, 8021944077202 |
Other Technical data
| Protection class | I |
| Reflector | High-gloss |
| Lamp holder | Other |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 15 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | Yes |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Light outlet | Direct |

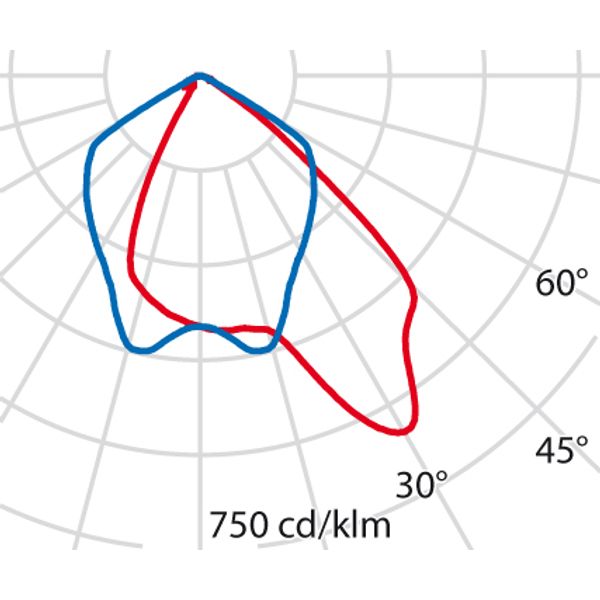

| Light sharing | Asymmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Nominal current | 350 |
| Colour of light | White |
| Adjustability | Rotatable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Rated ambient temperature according to IEC62722-2-1 | -15 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 41 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 93.8 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 92.4 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 87.7 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Power factor | 0.9 |
Downloads
Description
Schijnwerper met LED voor binnen en buiten bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak na chemische conversiebehandeling van het oppervlak. Afscherming van vlak gehard veiligheidsglas. De afscherming is onlosmakelijk verbonden met de behuizing met een siliconenpakking bestand tegen hoge temperatuur. Asymmetrische reflector met zeer hoog rendement van 99,99% zuiver aluminium gepolijst, geoxideerd enanti-verblinding. Externe schroeven van roestvrij staal. Sluitveer van het glas van roestvrij staal. Wandbeugel van staal gelakt met polyester poeder na voorafgaande kataforese. Compleet met 1 meter kabel H05RN-F 3G1 mm².
