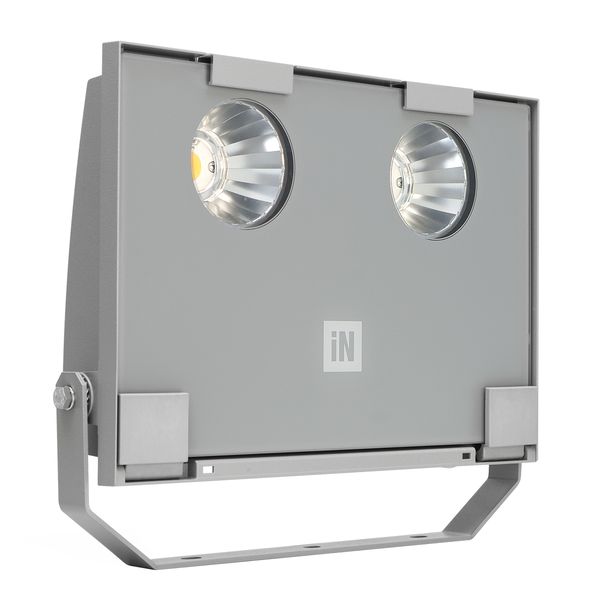

GUELL 2 102 C/I 840 GR94

Name: GUELL 2 102 C/I 840 GR94
Brand: Performance in Lighting
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 8018367721775

MPN: 3115108

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	GUELL 2 102 C/I 840 GR94
Brand	Performance in Lighting
Categories	Wall mounting lamps
Country of origin	IT
Harmonized System Code	9405 4210 00

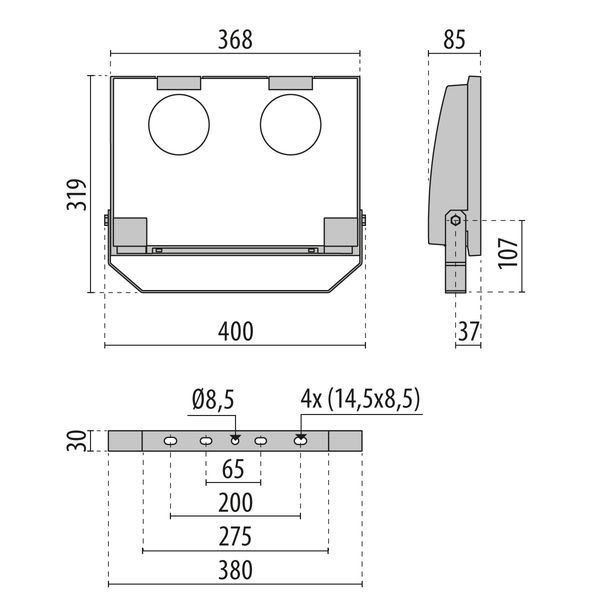

Width	319 mm
Colour rendering index CRI	80-89
Length	368 mm
Height/depth	85 mm
Lamp type	LED not exchangeable
Impact strength	IK07
Nominal voltage	220 V

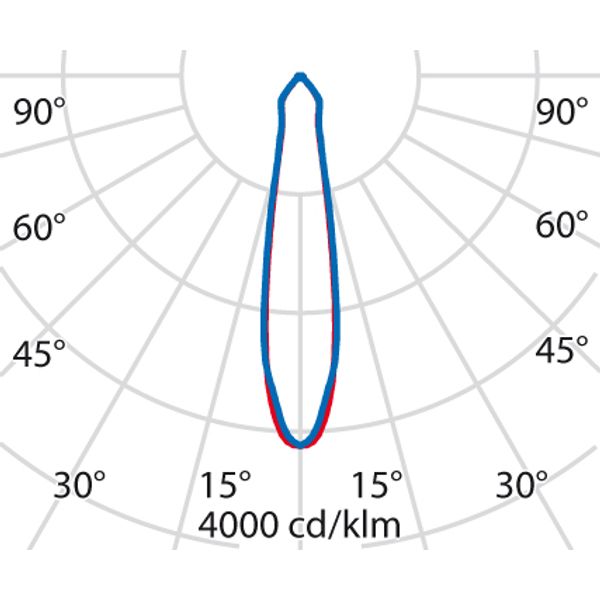

Beam angle	Narrow beam 11 - 20°
Colour temperature	4000 K
Max. system power	101 W

Packing details

Packing level 1

8018367721775, 8018367721775

Other Technical data

Protection class	I
Reflector	High-gloss
Lamp holder	None
Conductor cross section	1.5 mm²
Connection type	Screwed terminal
Colour housing	Grey
Surface protection	Powder coating
Voltage type	AC
With movement sensor	No
Suitable for lamp power	101 W
Type of control gear	LED operating device current-controlled
Suitable for wall mounting	Yes
With light sensor	No
Suitable for suspended mounting	No
Number of poles	3
Housing material	Aluminium
Light outlet	Direct
Light sharing	Symmetric
Material cover	Glass transparent
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	Yes
Covering of the luminaire with thermally insulating material possible	No
Suitable for number of lamps	1
Suitable for built-in mounting	No
With control gear	Yes
Suitable for workplace according to EN 12464-1	No
Suitable for surface mounting	No
Connectable conductor cross section	1 mm²
Surface brushed	No
Nominal current	1400
Colour of light	White
Adjustability	Rotatable
Suitable for traverse mounting	No
Suitable for pedestal/floor mounting	No
Suitable for light-track mounting	No
Suitable for clamp-mounting	No
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	295000 h
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG1
Rated ambient temperature according to IEC62722-2-1	-20 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
Light distributor	Diffuser lens/optic/panel
Suitable for low voltage cable system	No
Dimming DSI	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	16
Max. number of luminaires per miniature circuit breaker B16	10
Dimming DALI-2	No
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	Yes
Suitable for ceiling mounting	No
Power factor	0.9

Downloads

Mounting instruction

Description

LED schijnwerper voor binnen en buiten bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak na chemische conversiebehandeling van het oppervlak ISO 9227. Afscherming van extra helder vlak gehard veiligheidsglas. Reflectoren bijzonder hoogrenderend, van aluminium 99,99% zuiver, gepolijst, geoxideerd en zonder iridescentie. Pakking in slijtvast siliconen. Scheurbestendige kabelklem M20x1.5 voor kabels Ø 10 - Ø 14 mm. De versies met optiek A50/W zijn gemaakt met LED modules en reflectoren die speciaal zijn ontwikkeld voor omgevingen waar een lichtverdeling met een zeer grote asymmetrie nodig is. Externe schroeven van roestvrij staal. Klem van aluminium met stalen veer, kan niet los raken. Wandbeugel van staal gelakt met polyester poeder na voorafgaande kataforese. Te openen en te onderhouden armatuur. Versies met dimbare ballast leverbaar. Neem contact op met de afdeling verkoop. Neem contact op met de afdeling verkoop voor andere kleurtemperaturen en CRI. Raadpleeg de fabriek voor een geïntegreerde overspanningsbeveiliging (SPD) tegen netoverspanningen tot 10 kV. Design by GIORGIO LODI.
