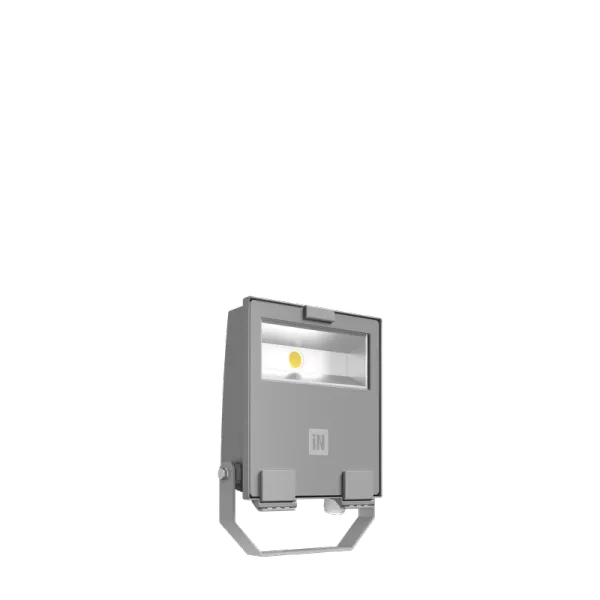

GUELL 1+ 50 S/W 830 GR94
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
112,80 €
EAN: 8018367753936
MPN: LTF1123FS830
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | GUELL 1+ 50 S/W 830 GR94 |
| Brand | Performance in Lighting |
| Categories |
Wall mounting lamps
|
| Country of origin | IT |
| Harmonized System Code | 9405 4210 00 |
| Width | 249 mm |
| Colour rendering index CRI | 80-89 |
| Length | 314 mm |
| Height/depth | 80 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 220 V |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 3000 K |
| Max. system power | 51 W |
Packing details
| Packing level 1 | 8018367753936, 8018367753936 |
Other Technical data
| Protection class | I |
| Reflector | High-gloss |
| Lamp holder | Other |
| Conductor cross section | 1 mm² |
| Connection type | Push-in clamp |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 51 W |
| Type of control gear | Electronic ballast |
| Suitable for wall mounting | Yes |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 1 mm² |
| Surface brushed | No |
| Nominal current | 1400 |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 28000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (NEMA) | 4 |
| Rated ambient temperature according to IEC62722-2-1 | -20 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Reflector |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 30.6 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 33 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 93.7 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 92.1 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 87.6 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Power factor | 0.9 |
Description
LED schijnwerper voor binnen en buiten bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak na chemische conversiebehandeling van het oppervlak ISO 9227/12944 - ISO 9223 (C5). Afscherming van extra helder vlak gehard veiligheidsglas. Reflectoren bijzonder hoogrenderend, van aluminium 99,99% zuiver, gepolijst, geoxideerd en zonder iridescentie. Pakking in slijtvast siliconen. Scheurbestendige kabelklem M20x1.5 voor kabels Ø 10 - Ø 14 mm. Schroeven van roestvrij staal. Klem van aluminium met stalen veer, kan niet los raken. Wandbeugel van staal gelakt met polyester poeder na voorafgaande kataforese. Te openen en te onderhouden armatuur (Toekomstbestendig). Neem contact op met de afdeling verkoop voor andere kleurtemperaturen en CRI.
