GSUN 5, 5,7 W, 710 lm, 840, white, on/off Ceiling and wall luminaires,
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
171,87 €
EAN: 4051859723431
MPN: 672534.002
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | GSUN 5, 5,7 W, 710 lm, 840, white, on/off Ceiling and wall luminaires, |
| Brand | RZB |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1140 00 |
| Width | 56 mm |
| Length | 336 mm |
| Height/depth | 75 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP54 |
| Colour temperature | 4000 K |
| Max. system power | 5.7 W |
| Rated luminous flux according to IEC 62722-2-1 | 710 lm |
Packing details
| Packing level 1 | 4051859723431, 4051859723431 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | II |
| Function | Escape route lighting |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | Electronic ballast |
| With remote control | No |
| Suitable for labelling type | Other |
| Number of poles | 2 |
| Number of lighting heads | 1 |
| Battery quality | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Other |
| Nominal current | 24-26 |
| Constant light output (CLO) | No |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Luminous flux in standby mode | 710 lm |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -10-45 °C |
| Light distributor | None |
| Max. number of luminaires per miniature circuit breaker C16 | 45 |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Exchangeable control gear | Yes |
| Power factor | 0.83 |
Downloads
Description

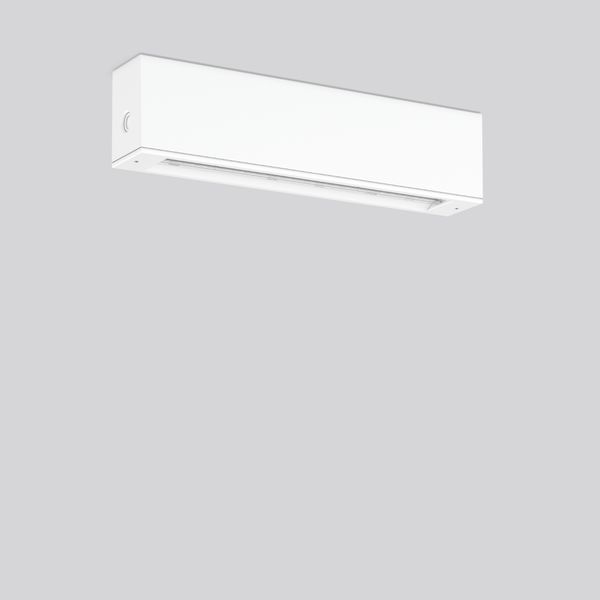

Rectangular surface-mounted luminaire in classic design. For escape route illumination. Housing: shockproof plastic (polycarbonate). Lens, plastic, for ideal light distribution on escape route. Suitable for ceiling mounting, suspension cable/chain, wall (surface). Large cable entry space. Suitable for through-wiring. Driver integrated. For connection to the emergency power supply. Suspension set as accessory.
