Phoenix Contact

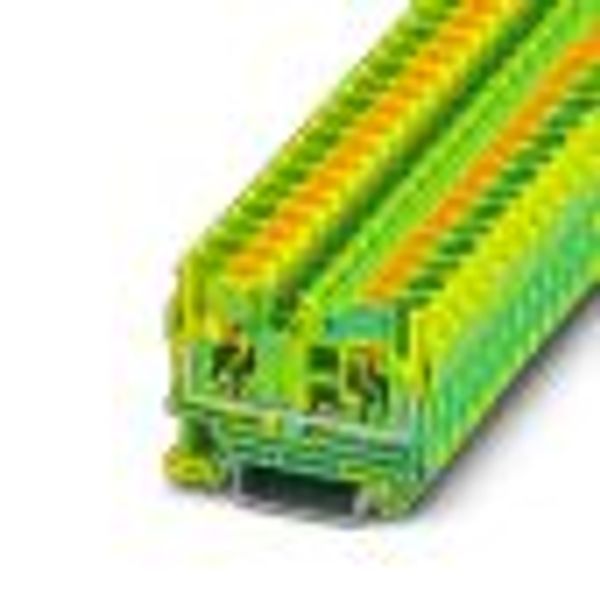

PT 6-PE - Ground terminal

In vendor's stock
Price (excl. VAT):
2,32 € per pcs
This price is valid until 24.12.25
EAN: 4046356494779
MPN: 3211822
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name PT 6-PE - Ground terminal
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin CN
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Type of electrical connection 1 Other
Type of electrical connection 2 Other
PEN function possible No
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.5-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-6 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-10 mm²
Connectable conductor cross section multi-wired 0.5-10 mm²

Packing details

Packing level 1 4046356494779, 4046356494779

Other Technical data

Colour Other
Width 8.15 mm
Height 57.73 mm
Depth 42.2 mm
Operating temperature 105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Material insulation body Other

Description

Ground modular terminal block, number of connections: 2, number of positions: 1, connection method: Push-in connection, cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow
