Gniazdo tablicowe skośne z puszką podtynkową i ramką

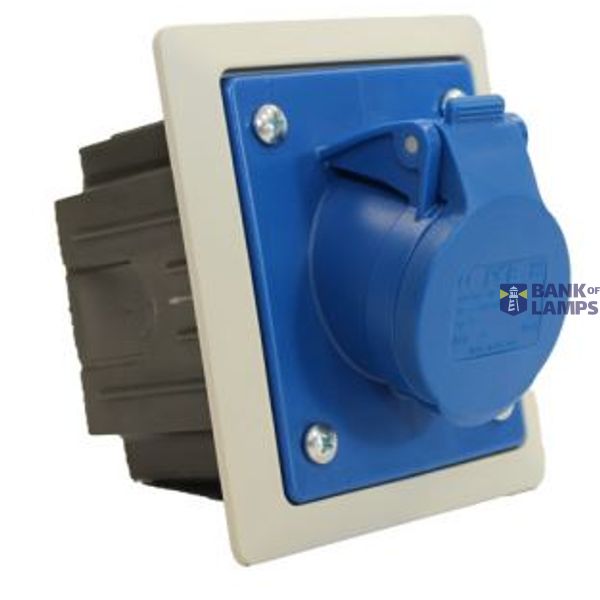

Name: Angled panel socket with flush-mounted box and frame
Brand: PCE
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Angled panel socket with flush-mounted box and frame
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001317
Number of poles	3
Material	Plastic
IEC-amperage	32 A
Connection system	Screwed terminal

Packing level 1	5902082015451
Packing level 2	5902082015451

RAL-number	5017
Rated frequency	50-60 Hz
Surface treatment contacts	Untreated
Amperage according to UL/CSA (for UL-version)	0 A
Angle of plug	Angled
Contact material	CuZn
Degree of protection (IP)	IP44
Military model	No
Clock hour position	6 h
Identification colour	Blue
Voltage according to EN 60309-2	230 V (50+60 Hz) blue

32A 230V 2P+Z 80x97mm
